Amphenol 132280RP RP-SMA Jack, 50 Ohm, 12.4 GHz, Bulkhead

MPN132280RP
Active

Amphenol RP-SMA jack, male pin, 50 Ohm, DC to 12.4 GHz, 500 mating cycles, weatherproof, bulkhead front-side nut, crimp/solder termination, gold body, includes 6-piece hardware kit.

$8.2775Ref. price · indicative, final on quote
132280RP datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

132280RP Technical Specifications
ParameterValue
Mounting typePanel Mount
Connector typeJack, Male Pin
Fastening typeThreaded
Voltage rating500 V
Frequency - max12.4 GHz
Ingress protectionWeatherproof
Mounting featureBulkhead - Front Side Nut
Cable groupRG-58, 58A, 58B, 58C, 141, 303, LMR-195, Belden B7806A, 9907
Operating temperature-65°C~165°C
Body materialBrass
Housing colorGold
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBrass
PackageBulk

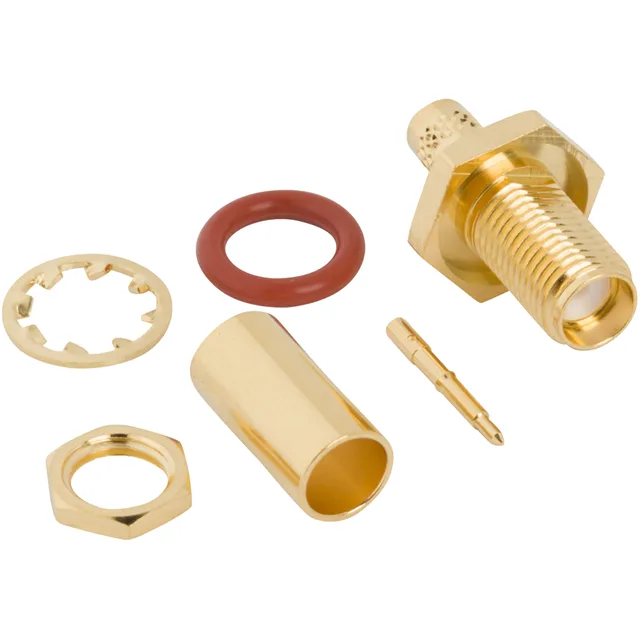

Includes6 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Gasket, 1 Lockwasher, 1 Nut
Impedance50Ohm
Body finishGold
Mating cycles500
Number of ports1
Shield terminationCrimp
Contact terminationSolder
Center contact platingGold

Product details

RP-SMA Bulkhead Jack, 50 Ohm, DC–12.4 GHz

The Amphenol 132280RP is an RP-SMA jack (male pin) designed for panel-mount bulkhead installations where a reverse-polarity interface is required — common in Wi-Fi, ISM-band, and wireless infrastructure where the standard SMA pin/socket arrangement is swapped to prevent accidental mating with standard SMA connectors. This connector ships as a complete hardware kit: one RP-SMA jack, one contact, one ferrule, one gasket, one lockwasher, and one nut. It is compatible with RG-58, RG-58A/B/C, RG-141, RG-303, LMR-195, Belden B7806A, and Belden 9907 cables.

Frequently asked questions

What cables are compatible with the 132280RP?

The 132280RP is compatible with RG-58, RG-58A, RG-58B, RG-58C, RG-141, RG-303, LMR-195, Belden B7806A, and Belden 9907 cables.

Does the 132280RP include all necessary hardware?

Yes, it ships as a 6-piece kit: one connector, one contact, one ferrule, one gasket, one lockwasher, and one nut — no separate hardware ordering needed.
