132289-14 Amphenol RF SMA Receptacle, 50 Ohm, 18 GHz

MPN132289-14
Active

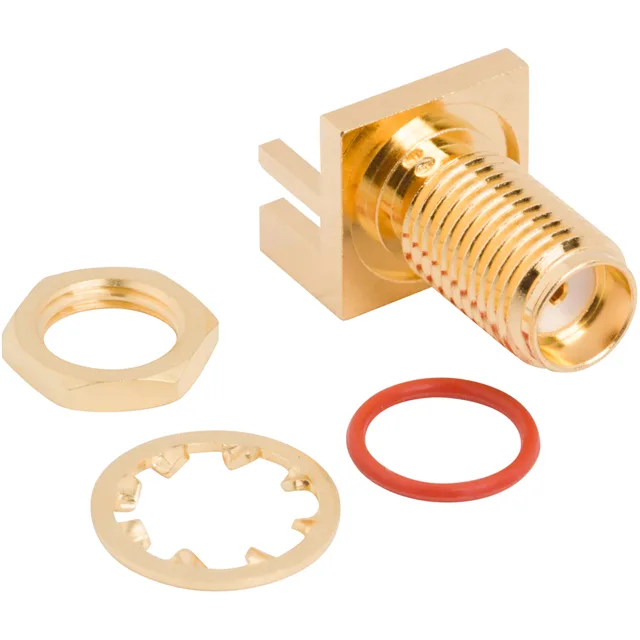

Amphenol RF SMA receptacle, 132289-14, 50 Ohm, 18 GHz, 1 port, female socket, bulkhead front-side nut, solder termination, gold body.

$8.9200Ref. price · indicative, final on quote
132289-14 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

132289-14 Technical Specifications
ParameterValue
Mounting typeBoard Edge, End Launch; Panel Mount
Connector typeReceptacle, Female Socket
Fastening typeThreaded
Frequency - max18 GHz
Mounting featureBulkhead - Front Side Nut
Operating temperature-65°C~165°C
Body materialBrass
Housing colorGold
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBeryllium Copper
PackageBag
Impedance50Ohm
Body finishGold
Mating cycles500
Number of ports1
Shield terminationSolder
Contact terminationSolder
Center contact platingGold

Product details

SMA Receptacle for 18 GHz Signal Paths

The Amphenol RF 132289-14 is a 50 Ohm SMA receptacle, female socket configuration, designed for board-edge end launch or panel mount with a bulkhead front-side nut. It handles signals up to 18 GHz — the 50 Ohm impedance and PTFE dielectric keep the transmission line controlled through the interface.

Mounting and Termination Fit

This receptacle mounts to the board edge via end launch or through a panel with the bulkhead front-side nut — the threaded body and nut secure it against vibration in the panel cutout. The center contact and shield both terminate by solder, so you hand-solder the center pin and ground legs to the PCB traces.

Frequently asked questions

Is 132289-14 compatible with standard SMA connectors?

Yes. The 132289-14 is a standard SMA receptacle (female socket, threaded coupling), so it mates with any SMA male plug that meets the MIL-STD-348 interface. The 50 Ohm impedance and 18 GHz bandwidth are within the SMA standard envelope.
