RP-N Type Plug for RG-8X Class Coax
500 Mating Cycles and Threaded Retention
The silver housing and white bronze body finish resist corrosion in outdoor or industrial cabinets. Single-port design — one plug per assembly.

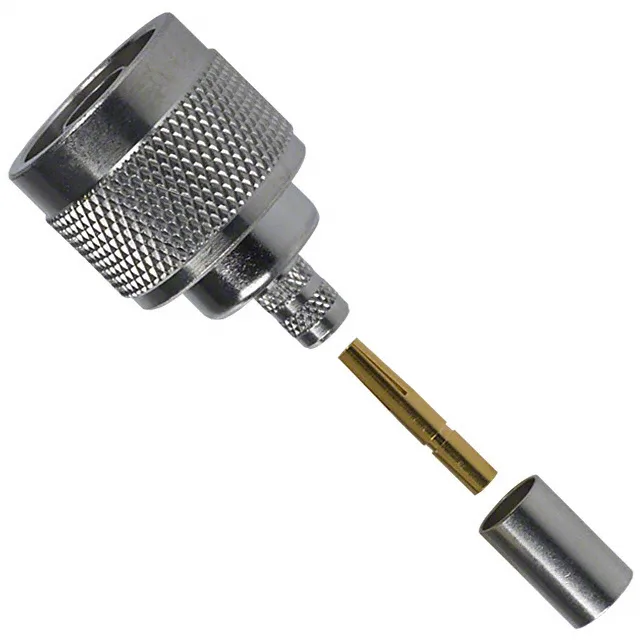

Amphenol RF 172135RP RP-N Plug, 11 GHz, 50 Ohm
MPN172135RP
Active
Amphenol RF RP-N Type plug, female socket, 50 Ohm, 11 GHz, 1500 V, crimp termination, for RG-8X/Belden 9258/LMR-240, gold-plated center contact, 500 mating cycles, bulk package includes connector, contact, ferrule.
$11.4700Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug, Female Socket |
| Fastening type | Threaded |
| Voltage rating | 1500 V |
| Frequency - max | 11 GHz |
| Cable group | RG-8X, Belden 9258, LMR-240 |
| Operating temperature | -65°C~165°C |
| Body material | Brass |
| Housing color | Silver |
| Dielectric material | Polytetrafluoroethylene (PTFE) |
| Center contact material | Phosphor Bronze |
| Package | Bulk |
All specifications
| Parameter | Value |
|---|---|
| Includes | 3 pcs - 1 Connector, 1 Contact, 1 Ferrule |
| Impedance | 50Ohm |
| Body finish | White Bronze |
| Mating cycles | 500 |
| Insertion loss | 0.15dB |
| Number of ports | 1 |
| Shield termination | Crimp |
| Contact termination | Crimp |
| Center contact plating | Gold |
Product details
Frequently asked questions
What is the impedance of 172135RP?
50 Ohm nominal impedance, rated through 11 GHz maximum frequency with 0.15 dB insertion loss.
What cable types are compatible with 172135RP?
RG-8X, Belden 9258, and LMR-240 — verify your coax diameter matches the crimp ferrule before terminating.
