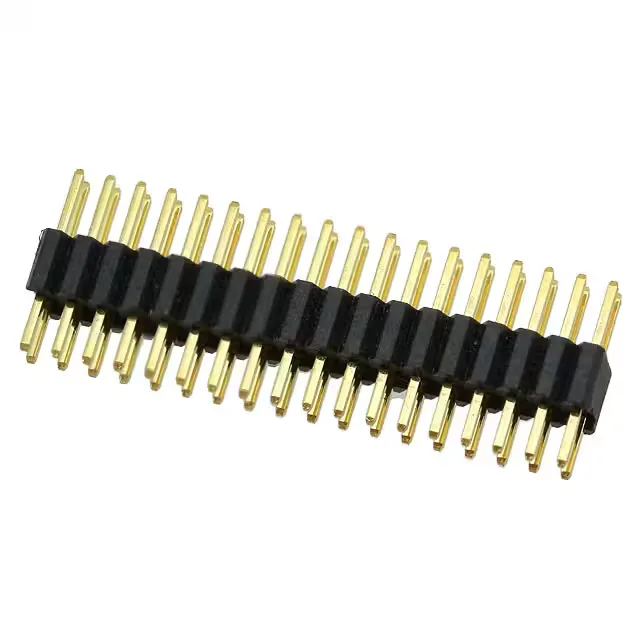

20021111-00036T4LF — Amphenol product photo
Amphenol

20021111-00036T4LF Pin Header – Amphenol Minitek127 1.27mm

MPN20021111-00036T4LF
Active

Amphenol ICC (FCI) Minitek127® 1.27mm, 36-position, dual-row, unshrouded through-hole header, gold-plated mating pins, rated 1 A per contact at 125 VAC, operating from -55°C to 125°C.

$2.6600Ref. price · indicative, final on quote
20021111-00036T4LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

20021111-00036T4LF Technical Specifications
ParameterValue
SeriesMinitek127® 1.27mm
GenderMale Pin
Mounting typeThrough Hole
Connector typeHeader
Fastening typePush-Pull
Voltage rating125VAC
Current rating1A per Contact
Operating temperature-55°C~125°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.098\" (2.50mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0
StyleBoard to Board
PackageTube
ShroudingUnshrouded
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.050\" (1.27mm)
Positions36
Row spacing - mating0.050\" (1.27mm)
Contact finish - postTin
Contact length - post0.091\" (2.30mm)
Overall contact length0.309\" (7.86mm)
Contact finish - matingGold
Contact length - mating0.120\" (3.05mm)
Contact finish thickness - post50.0µin (1.27µm)
Contact finish thickness - mating10.0µin (0.25µm)

Product details

Board-to-Board Signal Header – 1.27 mm Pitch, 36 Circuits

The 20021111-00036T4LF: This is a 36-position, dual-row unshrouded header from the Minitek127® 1.27mm series. The 1.27 mm pitch and 0.050" row spacing set the PCB footprint — a tight-pitch board-to-board interconnect for signal routing where board space is at a premium.

What Mates With This Header?

Unshrouded male pin header — mates with any standard 1.27 mm pitch dual-row socket or IDC receptacle that accepts 36 positions. Verify the mating receptacle's insertion depth against these dimensions.

Available through independent distribution channels.

Frequently asked questions

Does 20021111-00036T4LF have 2 rows and 36 positions?

Yes — it is a dual-row header with 36 positions, all loaded, on a 1.27 mm pitch.
