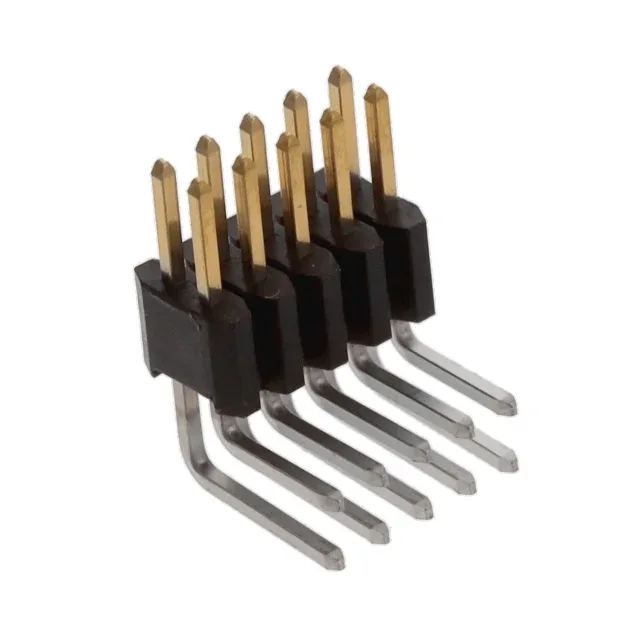

20021112-00010T1LF — Amphenol product photo
Amphenol

20021112-00010T1LF Amphenol ICC Minitek127 1.27mm

MPN20021112-00010T1LF
Active

Amphenol ICC (FCI) Minitek127® 1.27mm series, 20021112-00010T1LF, board-to-board header, 10 positions, 2 rows, 0.050" (1.27mm) pitch, right-angle through-hole, gold mating finish, 1A per contact, 125VAC, UL94 V-0.

$0.7600Ref. price · indicative, final on quote
20021112-00010T1LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

20021112-00010T1LF Technical Specifications
ParameterValue
SeriesMinitek127® 1.27mm
GenderMale Pin
Mounting typeThrough Hole, Right Angle
Connector typeHeader
Fastening typePush-Pull
Voltage rating125VAC
Current rating1A per Contact
Operating temperature-55°C~125°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.135\" (3.43mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0
StyleBoard to Board
PackageTube
ShroudingUnshrouded
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.050\" (1.27mm)
Positions10
Row spacing - mating0.050\" (1.27mm)
Contact finish - postTin
Contact length - post0.106\" (2.69mm)
Contact finish - matingGold
Contact length - mating0.120\" (3.05mm)
Contact finish thickness - post50.0µin (1.27µm)
Contact finish thickness - matingFlash

Product details

Board-to-Board Header at 1.27mm Pitch

The 20021112-00010T1LF is a 10-position, dual-row, unshrouded header from the Minitek127® 1.27mm series, designed for board-to-board interconnects. The gold mating finish provides reliable contact resistance over repeated mating cycles, which matters in designs where the connector sees periodic disconnection for service or rework. Through-hole solder termination gives a mechanically robust joint that holds up to moderate cable strain.

The mating finish is gold flash — enough for reliable low-level signal contact but not intended for high-cycle applications; if the design calls for frequent reconnections, consider a thicker gold option in the same series.

Packaged in tube. If bulk or tape-and-reel is needed, check the base product number 20021112 for alternate packaging options within the series.

Frequently asked questions

What is the current rating of 20021112-00010T1LF?

Rated 1A per contact at 125VAC. This is a signal-level current; for higher power, consider a larger pitch or higher-current series.

Is 20021112-00010T1LF RoHS compliant?

Yes, RoHS compliant per.
