Amphenol ICC (FCI) Minitek127® 1.27mm series, 12-position dual-row header, 0.050" (1.27 mm) pitch, SMT, shrouded 4-wall, gold-plated mating contacts, rated 1 A per contact at 125 VAC, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | Minitek127® 1.27mm |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Fastening type | Push-Pull |
| Voltage rating | 125VAC |
| Current rating | 1A per Contact |
| Operating temperature | -55°C~125°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.220\" (5.60mm) |
| Insulation material | Thermoplastic |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Pick and Place |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.050\" (1.27mm) |
| Positions | 12 |
| Row spacing - mating | 0.050\" (1.27mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Contact length - mating | 0.120\" (3.05mm) |
| Contact finish thickness - post | 50.0µin (1.27µm) |
| Contact finish thickness - mating | 10.0µin (0.25µm) |

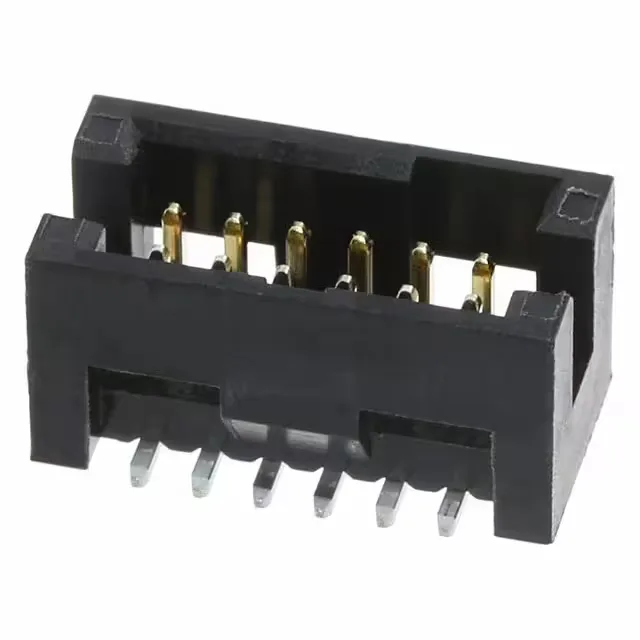

The 20021221-00012C4LF is a 12-position, dual-row, shrouded header from the Minitek127® 1.27mm series by Amphenol ICC (FCI). It is a surface-mount board-to-board header with a 1.27 mm pitch, gold-plated mating contacts, and a push-pull fastening type.
The base part number is 20021221, which covers the full Minitek127® 1.27mm SMT header family.
It is a surface-mount header with a 1.27 mm (0.050") pitch and 0.050" row spacing.
