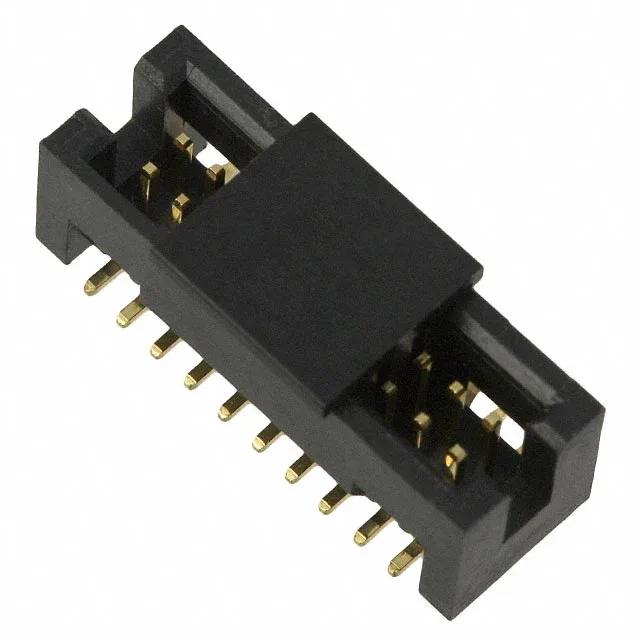

20021221-00020T1LF — Amphenol product photo
Amphenol

20021221-00020T1LF Amphenol ICC Minitek127 1.27mm SMT Header

MPN20021221-00020T1LF
Active

Amphenol ICC (FCI) Minitek127® 1.27mm, 20-position, dual-row, SMT, shrouded 4-wall board-to-board header, male pin, gold flash mating finish, UL94 V-0, rated 1 A per contact at 125 VAC, -55°C to 125°C.

$1.0700Ref. price · indicative, final on quote
20021221-00020T1LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

20021221-00020T1LF Technical Specifications
ParameterValue
SeriesMinitek127® 1.27mm
GenderMale Pin
Mounting typeSurface Mount
Connector typeHeader
Fastening typePush-Pull
Voltage rating125VAC
Current rating1A per Contact
Operating temperature-55°C~125°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.220\" (5.60mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0
StyleBoard to Board
PackageTube
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.050\" (1.27mm)
Positions20
Row spacing - mating0.050\" (1.27mm)
Contact finish - postTin
Contact finish - matingGold
Contact length - mating0.120\" (3.05mm)
Contact finish thickness - post50.0µin (1.27µm)
Contact finish thickness - matingFlash

Product details

Board-to-Board Fit: Pitch, Positions, and Stack Height

The 20021221-00020T1LF: Push-pull fastening means no tool is needed to engage or separate the pair.

Ratings and Operating Range

The 1 A ceiling is typical for a 1.27 mm pitch signal connector — the narrow contact beam and small solder tail limit continuous current before temperature rise becomes a concern. The tin-plated solder tails are standard for SMT assembly and wet well with lead-free solder paste.

The insulation color is black, which is the standard for the Minitek127 series.

Frequently asked questions

What is the closest pin-compatible alternative to 20021221-00020T1LF?

No official pin-compatible alternative is listed by the manufacturer. The 20021221 base number covers the Minitek127 SMT header family; other position counts in the same series share the same pitch and contact layout but differ in circuit count.

What is the pitch and mounting type of 20021221-00020T1LF?

The pitch is 1.27 mm (0.050") on both the mating interface and the row spacing. The mounting type is Surface Mount (SMT).
