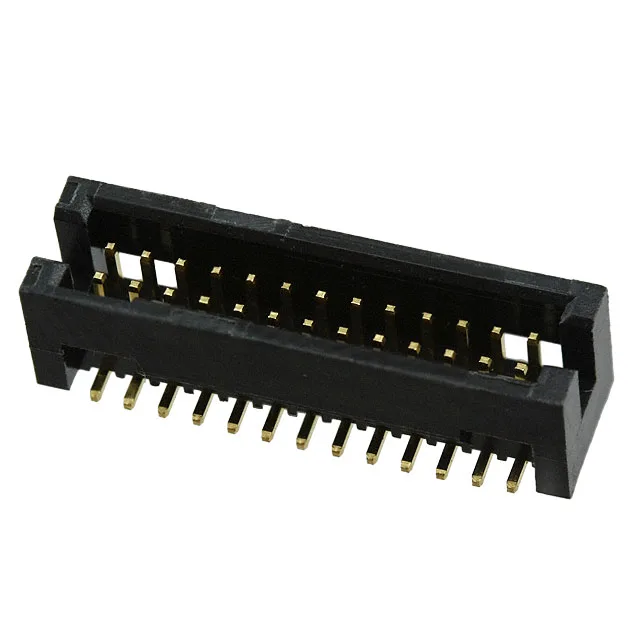

20021221-00026D4LF Amphenol ICC Minitek127 1.27mm Header

MPN20021221-00026D4LF
Active

Amphenol ICC (FCI) Minitek127® 1.27mm series, 26-position dual-row shrouded header, SMT, gold-plated mating contacts, rated 1A per contact at 125VAC, UL94 V-0.

$1.4462Ref. price · indicative, final on quote
20021221-00026D4LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

20021221-00026D4LF Technical Specifications
ParameterValue
SeriesMinitek127® 1.27mm
GenderMale Pin
Mounting typeSurface Mount
Connector typeHeader
Fastening typePush-Pull
Voltage rating125VAC
Current rating1A per Contact
Operating temperature-55°C ~ 125°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.220\" (5.60mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0
StyleBoard to Board
PackageTube
FeaturesPick and Place
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.050\" (1.27mm)
Positions26
Row spacing - mating0.050\" (1.27mm)
Contact finish - postTin
Contact finish - matingGold
Contact length - mating0.120\" (3.05mm)
Contact finish thickness - post50.0µin (1.27µm)
Contact finish thickness - mating10.0µin (0.25µm)

Product details

1.27mm Pitch, 26-Position Shrouded Header

The 20021221-00026D4LF: The push-pull fastening means it's a friction-lock mate — no latch, so it's not rated for high-vibration environments without additional board retention.

Gold Mating Surface and Current Ceiling

Mating contacts are gold-plated at 10.0µinch (0.25µm) over a copper alloy base — this is a signal-grade finish, good for 50–100 mating cycles in a clean environment. Rated 1A per contact at 125VAC.

Surface-mount termination with pick-and-place features — the header is supplied in tube packaging, but the flat top surface and symmetrical body allow vacuum pickup.

Frequently asked questions

What is the mating connector for the 20021221-00026D4LF header?

This header mates with a Minitek127 1.27mm pitch receptacle, also dual-row, 26-position, with a 4-wall shroud. The mating half is a female socket connector from the same series — look for the corresponding receptacle part number in the Minitek127 family. The push-pull friction lock means no additional latching hardware is needed.

Is the 20021221-00026D4LF RoHS compliant?

Yes, the part carries RoHS compliance as standard from Amphenol ICC. The tin-plated solder posts and gold-plated mating contacts are within RoHS limits.
