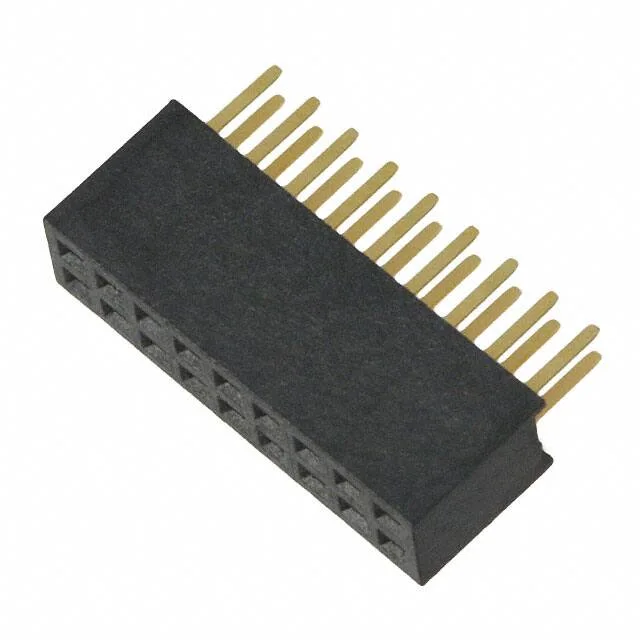

Molex Minitek127 1.27mm Receptacle, 18-Position, 20021311-00018T4LF
MPN20021311-00018T4LF
Active
Molex Minitek127® 1.27mm dual-row receptacle, 18 positions (9 per row), 0.050" pitch, gold-plated mating contacts, tin-plated solder posts, phosphor bronze, through-hole mount, -40°C to 105°C operating, UL94 V-0, push-pull friction-lock.
$1.0414Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Minitek127® 1.27mm |
| Type | Female Socket |
| Mounting | Through Hole |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Operating temperature | -40°C~105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.173\" (4.40mm) |
| Insulation material | Plastic |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
All specifications
| Parameter | Value |
|---|---|
| Package | Tube |
| Termination | Solder |
| Applications | General Purpose, Industrial, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.050\" (1.27mm) |
| Positions | 18 |
| Row spacing - mating | 0.050\" (1.27mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.094\" (2.40mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 10.0µin (0.25µm) |
Frequently asked questions
Where can I buy 20021311-00018T4LF and how is it quoted for volume purchases?
Sourced through independent distribution, quoted to order against the BOM quantity with current pricing confirmed at quote time. No stock-holding commitment or authorised-channel exclusivity is claimed.
