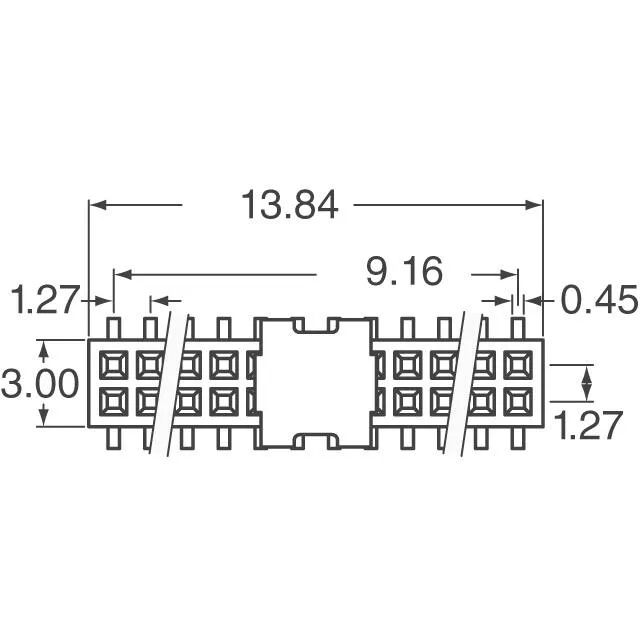

20021321-00016C4LF — Amphenol product photo
Amphenol

20021321-00016C4LF Amphenol ICC Minitek127 16-Pin Female

MPN20021321-00016C4LF
Active

Amphenol ICC (FCI) Minitek127® 1.27mm, 16-position dual-row SMT receptacle, gold mating contacts, UL94 V-0 housing, -40°C to 105°C operating range.

$1.7800Ref. price · indicative, final on quote
20021321-00016C4LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

20021321-00016C4LF Technical Specifications
ParameterValue
SeriesMinitek127® 1.27mm
GenderFemale Socket
Mounting typeSurface Mount
Connector typeReceptacle
Fastening typePush-Pull
Operating temperature-40°C~105°C
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.177\" (4.50mm)
Insulation materialPlastic
Material flammability ratingUL94 V-0
StyleBoard to Board
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesPick and Place
TerminationSolder
ApplicationsGeneral Purpose, Industrial, Telecommunications
Contact shapeSquare
Rows2
Pitch0.050\" (1.27mm)
Positions16
Row spacing - mating0.050\" (1.27mm)
Contact finish - postTin
Contact finish - matingGold
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating10.0µin (0.25µm)

Product details

1.27 mm Pitch, 16-Position Dual-Row SMT Receptacle

The 20021321-00016C4LF: This is a 16-position, dual-row surface-mount receptacle from the Minitek127® 1.27mm series by Amphenol ICC (FCI). The 1.27 mm pitch and 1.27 mm row spacing match a standard fine-pitch header footprint, giving board layout engineers a compact, routable interconnect for general-purpose, industrial, and telecommunications applications. The mating contacts are gold-plated at 10.0 µinch (0.25 µm) over phosphor bronze, with tin-plated solder posts at 100.0 µinch (2.54 µm).

Pick and Place for Automated Assembly

This connector includes a Pick and Place feature — a flat top surface or cap that a vacuum nozzle can grab during SMT placement. That saves a manual handling step on the line and keeps the part oriented correctly through reflow.

Frequently asked questions

What is the pitch of 20021321-00016C4LF?

The mating pitch is 0.050" (1.27 mm), and the row spacing is also 0.050" (1.27 mm). That is a standard fine-pitch footprint for board-to-board interconnects.
