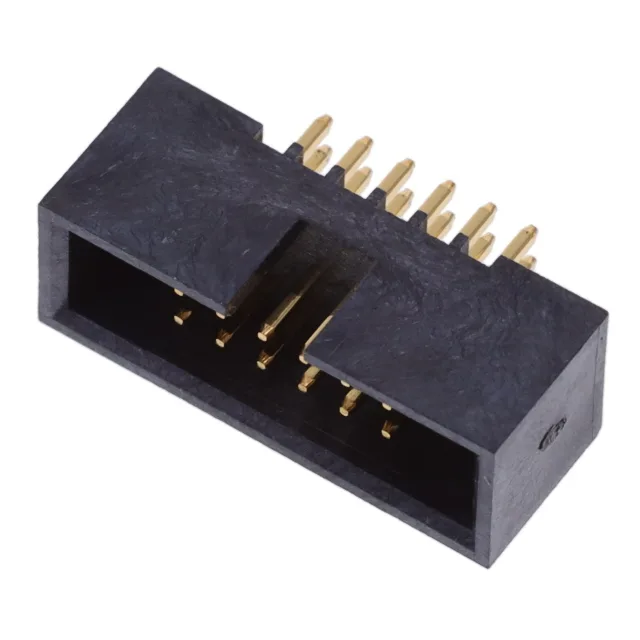

Amphenol ICC (FCI) Minitek127® 20021511 series, 20021511-00012T4LF, 12-position, 2-row, 1.27mm pitch, shrouded header, through-hole, gold-plated contacts, 1A per contact, 125VAC, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | Minitek127® 20021511 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Voltage rating | 125VAC |
| Current rating | 1A per Contact |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.213\" (5.40mm) |
| Insulation material | Plastic |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tube |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.050\" (1.27mm) |
| Positions | 12 |
| Row spacing - mating | 0.050\" (1.27mm) |
| Contact length - post | 0.091\" (2.30mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 10.0µin (0.25µm) |
The gold-plated contacts (10.0µin) resist corrosion and maintain low contact resistance over repeated mating cycles.
The push-pull fastening type and keying slot ensure correct orientation during assembly, reducing the risk of mis-mating in multi-connector panels.
The mating pitch is 0.050" (1.27mm) and the row spacing is also 0.050" (1.27mm), giving a 2-row, 12-position layout.
