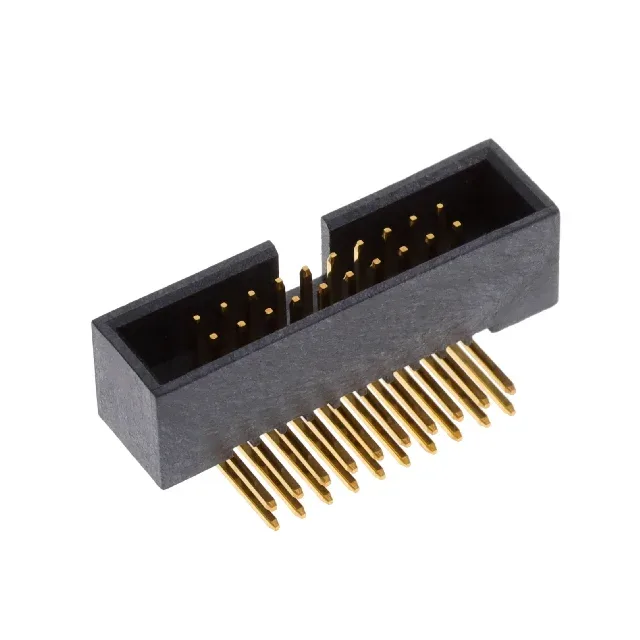

20021512-00020T4LF — Amphenol product photo
Amphenol

20021512-00020T4LF Amphenol ICC Minitek127 20-Pin

MPN20021512-00020T4LF
Active

Amphenol ICC (FCI) Minitek127® 20021512 series, 20021512-00020T4LF: 20-position, dual-row, 1.27mm pitch, right-angle through-hole header, shrouded, gold-plated contacts, 1 A per contact, 125 VAC, RoHS compliant.

$3.0600Ref. price · indicative, final on quote
20021512-00020T4LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

20021512-00020T4LF Technical Specifications
ParameterValue
SeriesMinitek127® 20021512
GenderMale Pin
Mounting typeThrough Hole, Right Angle
Connector typeHeader
Fastening typePush-Pull
Voltage rating125VAC
Current rating1A per Contact
Operating temperature-40°C~105°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.201\" (5.10mm)
Insulation materialPlastic
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTube
FeaturesKeying Slot
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.050\" (1.27mm)
Positions20
Row spacing - mating0.050\" (1.27mm)
Contact length - post0.091\" (2.30mm)
Contact finish - matingGold
Contact finish thickness - mating10.0µin (0.25µm)

Product details

Gold-Plated Contacts and Mating Cycle Life

The 20021512-00020T4LF: In a typical test-equipment or instrumentation harness cycled a few times a year, this plating grade supports the product lifetime without fretting corrosion.

Sourced through independent distribution channels; quoted to order against your BOM quantity.

The through-hole solder termination is compatible with standard wave-solder profiles; the 0.091" (2.30mm) post length suits single-sided or double-sided boards with typical 1.6mm thickness.

Frequently asked questions

Is 20021512-00020T4LF RoHS compliant?

Yes, it is RoHS compliant per the manufacturer's listing.
