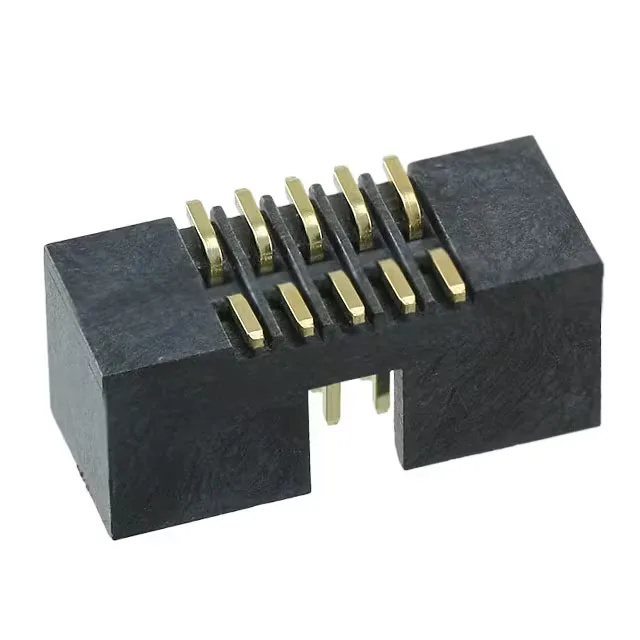

20021521-00010T1LF Amphenol ICC Minitek127® SMT Header

MPN20021521-00010T1LF
Active

Amphenol ICC (FCI) Minitek127® 20021521 series, 10-position dual-row SMT header, 1.27 mm pitch, 1 A per contact, 125 VAC, gold flash plating, shrouded 4-wall, push-pull latch, UL94 V-0, RoHS, active.

$1.4100Ref. price · indicative, final on quote
20021521-00010T1LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

20021521-00010T1LF Technical Specifications
ParameterValue
SeriesMinitek127® 20021521
GenderMale Pin
Mounting typeSurface Mount
Connector typeHeader
Fastening typePush-Pull
Voltage rating125VAC
Current rating1A per Contact
Operating temperature-40°C~105°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.220\" (5.60mm)
Insulation materialPlastic
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTube
FeaturesKeying Slot
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.050\" (1.27mm)
Positions10
Row spacing - mating0.050\" (1.27mm)
Contact finish - postGold
Contact finish - matingGold
Contact finish thickness - postFlash
Contact finish thickness - matingFlash

Product details

Board Layout Fit: 1.27 mm Pitch, 10 Positions, SMT

The 20021521-00010T1LF: The 1.27 mm pitch and 0.050" row spacing set a compact dual-row footprint — 10 positions total, all loaded. The surface-mount solder tails reflow alongside other SMD components, eliminating a wave-solder pass.

Mating Half and Housing Family

RoHS compliant.

The 10-position 20021521-00010T1LF (tube) differs from the 20-position 20021521-00020T1LF only in position count — same pitch, current, voltage, and plating. For tape-and-reel pick-and-place, the 20021521-00010E1LF carries the same specs but ships on reel instead of tube. The 20021521-00010D1LF adds a pick-and-place feature but is otherwise identical.

Flammability and Temperature Range

UL94 V-0 rated housing — the material self-extinguishes within 10 seconds, a standard requirement for connectors inside enclosed equipment.

Frequently asked questions

What is the closest alternate to 20021521-00010T1LF?

The 20021521-00010D1LF is functionally identical — same 10 positions, 1.27 mm pitch, gold flash, and SMT termination — but adds a pick-and-place feature for automated assembly. The 20021521-00010E1LF is the same header on tape-and-reel instead of tube.

What is the current rating per pin for 20021521-00010T1LF?

1 A per contact at 125 VAC. This is a signal-level current rating; for power distribution above 1 A per circuit, a higher-current series would be needed.

How can I order 20021521-00010T1LF and check availability?

Sourced to order against your BOM quantity.
