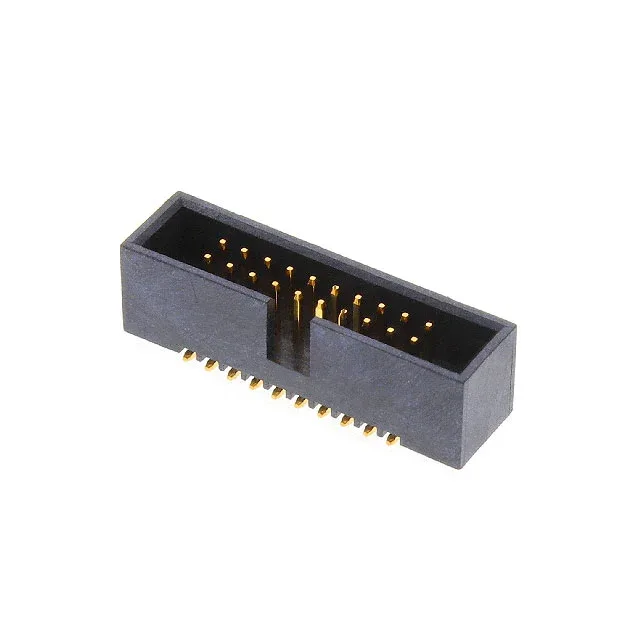

20-Position, 1.27 mm Pitch SMT Header
A keying slot in the shroud ensures the mating receptacle is correctly oriented — mismated connectors are mechanically blocked. The pick-and-place feature on the top of the shroud enables automated SMT assembly.
Board-to-Cable/Wire Style and Mating
This header is classified as Board to Cable/Wire style, meaning it mates with a discrete-wire or ribbon-cable receptacle, not a second board. The 1.27 mm pitch and dual-row layout are compatible with standard 1.27 mm IDC ribbon cable receptacles — the 20 positions match a 20-conductor ribbon. For vibration-prone environments, verify the mating receptacle has a positive lock or secondary retention.
The 125 VAC voltage rating and 1 A per contact current rating define the signal-level duty — not for power distribution.
