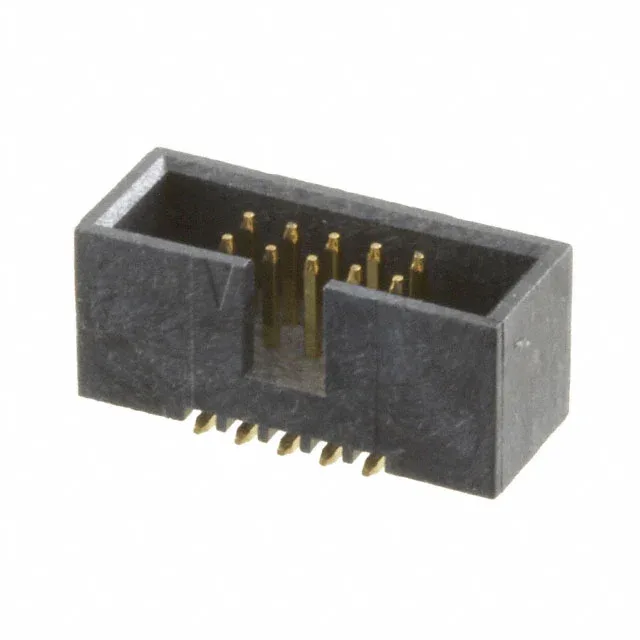

20021521-00110C1LF — Amphenol product photo
Amphenol

20021521-00110C1LF Amphenol ICC (FCI) Minitek127 1.27mm

MPN20021521-00110C1LF
Active

Amphenol ICC (FCI) Minitek127® 20021521 series, 1.27mm pitch, 10-position, dual-row SMT header, shrouded 4-wall, push-pull latch, gold flash contacts, 1 A per contact, 125 VAC, -40°C~105°C, UL94 V-0.

$1.3032Ref. price · indicative, final on quote
20021521-00110C1LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

20021521-00110C1LF Technical Specifications
ParameterValue
SeriesMinitek127® 20021521
GenderMale Pin
Mounting typeSurface Mount
Connector typeHeader
Fastening typePush-Pull
Voltage rating125VAC
Current rating1A per Contact
Operating temperature-40°C~105°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.220\" (5.60mm)
Insulation materialPlastic
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTape & Reel (TR)
FeaturesKeying Slot, Pick and Place
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.050\" (1.27mm)
Positions10
Row spacing - mating0.050\" (1.27mm)
Contact finish - postGold
Contact finish - matingGold
Contact finish thickness - postFlash
Contact finish thickness - matingFlash

Product details

10-Position Dual-Row SMT Header with Shroud

The 1.27mm pitch and 1.27mm row spacing set a compact board footprint — tight enough for dense signal routing but still hand-solderable under magnification.

Current, Voltage, and Thermal Limits

The 1 A ceiling is conservative for the 1.27mm pitch; the temperature rise at full load stays within the UL94 V-0 plastic housing limit.

Peer Comparison: Tape & Reel vs Tube Packaging

This part (20021521-00110C1LF) ships Tape & Reel (TR) — pick-and-place ready with a keying slot and vacuum pick-up area. The closest peer 20021521-00010D1LF is identical in every spec except packaging: that one ships in a Tube. For volume SMT assembly, the TR version avoids the tube-to-reel transfer step; for prototype or low-volume builds, the tube version may be easier to handle. Both carry the same 10-position, 1.27mm pitch, gold flash, shrouded design.

Frequently asked questions

Where can I buy 20021521-00110C1LF?

We source this active-production part through independent distribution channels. Submit an RFQ with your target quantity and lead-time window; we confirm availability and current pricing at quote time.

What is the mating connector for 20021521-00110C1LF?

This is a board-to-cable/wire header — it mates with a Minitek127® 1.27mm pitch receptacle housing (crimp or IDC type). The 4-wall shroud and push-pull latch are designed for a matching receptacle with the same keying slot. Confirm the circuit count and row spacing match your cable assembly.
