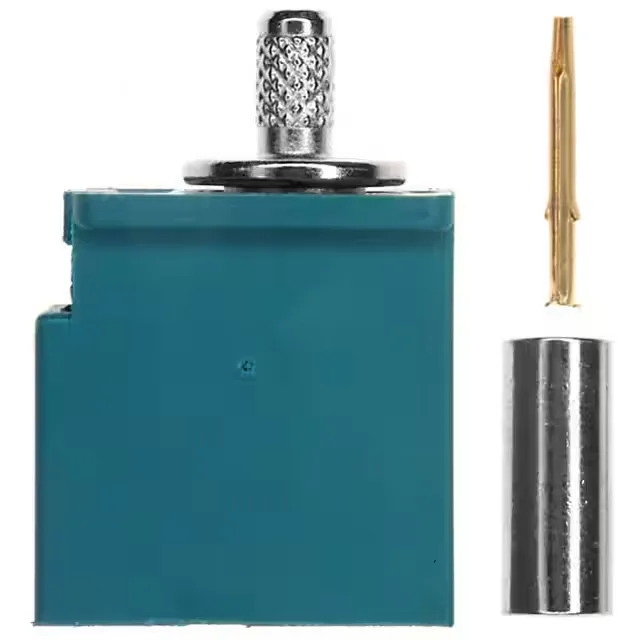

Amphenol RF SMB, Fakra jack, female socket, 50 Ohm, 6 GHz, crimp termination, latch lock, free hanging, includes contact and ferrule, Bulk.
| Parameter | Value |
|---|---|
| Mounting type | Free Hanging (In-Line) |
| Connector type | Jack, Female Socket |
| Fastening type | Latch Lock |
| Frequency - max | 6 GHz |
| Cable group | RG-174, 188, 188A, 316, LMR-100, M17/119-RG174 |
| Operating temperature | -40°C~100°C |
| Body material | Zinc Die Cast |
| Housing color | Blue, Water |
| Dielectric material | Polytetrafluoroethylene (PTFE) |
| Center contact material | Phosphor Bronze |
| Package | Bulk |
| Features | Code Z |
| Includes | 3 pcs - 1 Connector, 1 Contact, 1 Ferrule |
| Impedance | 50Ohm |
| Body finish | Nickel |
| Mating cycles | 100 |
| Insertion loss | 0.3dB |
| Number of ports | 1 |
| Shield termination | Crimp |
| Contact termination | Crimp |
| Center contact plating | Gold |
The 0.3 dB insertion loss across the band means the signal budget stays tight, even at the upper frequency limit.
This jack is factory-crimped onto RG-174, RG-188A, RG-316, LMR-100, or M17/119-RG174 cable — the cable group is listed in the spec, so the crimp die and ferrule are matched to those diameters. The kit includes one connector body, one center contact, and one ferrule, so you get everything needed for a single termination.
The spec lists RG-174, RG-188, RG-188A, RG-316, LMR-100, and M17/119-RG174 as compatible cable groups. The crimp ferrule and center contact are sized for these diameters.
Yes, the kit includes 3 pieces: one connector body, one center contact, and one ferrule — everything needed for a single termination.
