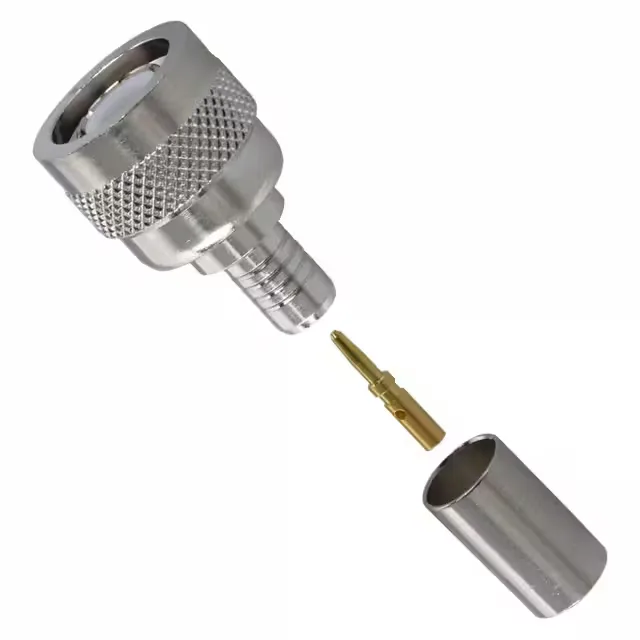

Amphenol RF 31-2368 TNC plug, male pin, 50 Ohm, 11 GHz, crimp termination, nickel body, gold center contact, includes connector, contact, ferrule.
| Parameter | Value |
|---|---|
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug, Male Pin |
| Fastening type | Threaded |
| Voltage rating | 500 V |
| Frequency - max | 11 GHz |
| Cable group | RG-59, 59B, 62, 140, 210, Belden 8241, 8263, 8279, 9209 |
| Operating temperature | -65°C~165°C |
| Body material | Brass |
| Housing color | Silver |
| Dielectric material | Polytetrafluoroethylene (PTFE) |
| Center contact material | Brass |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Includes | 3 pcs - 1 Connector, 1 Contact, 1 Ferrule |
| Impedance | 50Ohm |
| Body finish | Nickel |
| Mating cycles | 500 |
| Insertion loss | 0.18dB |
| Number of ports | 1 |
| Shield termination | Crimp |
| Contact termination | Crimp or Solder |
| Center contact plating | Gold |
This plug accepts RG-59, 59B, 62, 140, 210, and Belden 8241, 8263, 8279, 9209. The contact can be crimped or soldered; the shield is crimped via the included ferrule.
Insertion loss is 0.18 dB across the band, and the 500-cycle mating rating means this plug holds up to frequent connect-disconnect in field-service or test-bench use — the gold-on-brass centre contact resists fretting corrosion over that life.
It is designed for RG-59, 59B, 62, 140, 210, and Belden 8241, 8263, 8279, 9209. The kit includes the crimp ferrule for the shield termination.
