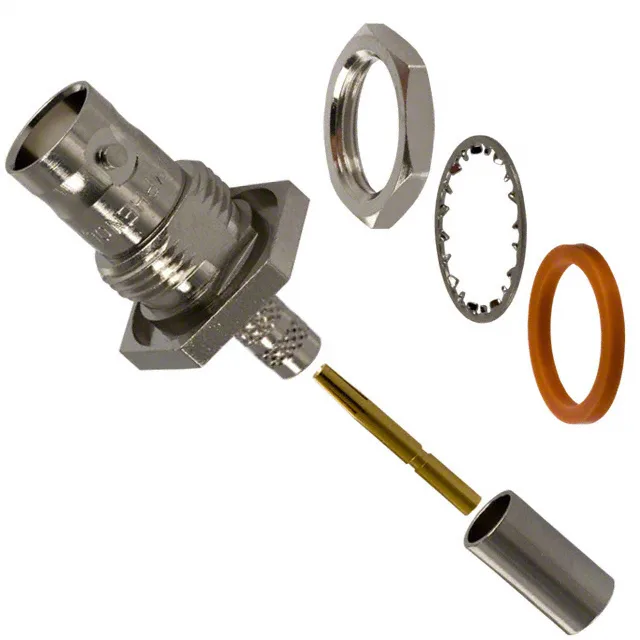

31-343-RFX — Amphenol product photo
Amphenol

Amphenol RF 31-343-RFX BNC Jack, 50 Ohm, 4 GHz, Bulkhead Kit

MPN31-343-RFX
Active

Amphenol RF BNC jack, 50 Ohm, 4 GHz, bulkhead mount, crimp termination, 7-piece kit, nickel body, gold center contact, 500 mating cycles.

$8.2700Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

31-343-RFX Technical Specifications
ParameterValue
Mounting typePanel Mount
Connector typeJack, Female Socket
Fastening typeBayonet Lock
Voltage rating500 V
Frequency - max4 GHz
Mounting featureBulkhead - Front Side Nut
Cable groupRG-59, 59B, 62, 140, 210, Belden 8241, 8263, 8279, 9209
Operating temperature-65°C~165°C
Body materialBrass
Housing colorSilver
Dielectric materialPolyoxymethylene (POM) Acetal
Center contact materialPhosphor Bronze
PackageBulk
Includes7 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Gasket, 1 Insulator, 1 Lockwasher, 1 Nut
Impedance50Ohm
Body finishNickel
Mating cycles500
Insertion loss0.2dB
Number of ports1
Shield terminationCrimp
Contact terminationCrimp
Center contact platingGold

Product details

50 Ohm BNC Bulkhead Kit — 4 GHz, 7-Piece Install Set

The 31-343-RFX: The 500-cycle mating life means this jack holds up on a test panel or a camera drop that gets reconnected regularly; the gold-plated phosphor bronze centre contact keeps the mating surface oxide-free across those cycles.

This kit is compatible with the RG-59, 62, 140, 210, and Belden 8241, 8263, 8279, 9209 cables. The crimp ferrule and centre contact are sized for the dielectric and braid diameters of those cables.

Bulkhead Install — Front-Side Nut, No Backside Access Needed

The mounting feature is bulkhead with a front-side nut — you drop the jack through the panel from the front and tighten the nut from the same side. That matters when the back of the panel is a rats-nest of cables or a sealed enclosure you don't want to open. The kit includes the gasket for a weather-resistant seal against the panel face; the lockwasher keeps the nut from backing off under vibration.

Frequently asked questions

What cables does 31-343-RFX support?

The 31-343-RFX is compatible with RG-59, 59B, 62, 140, 210, and Belden 8241, 8263, 8279, 9209 — the crimp ferrule and centre contact are sized for those cable diameters and dielectrics.
