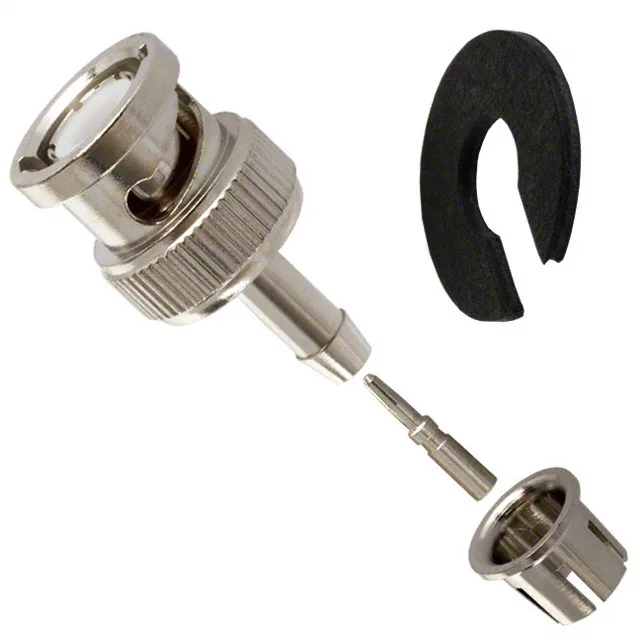

31-4700 — Amphenol product photo
Amphenol

Amphenol RF 31-4700 BNC Plug, 50 Ohm, 4 GHz, RG-58/LMR-195

MPN31-4700
Active

Amphenol RF 31-4700 BNC plug, male pin, 50 Ohm, 4 GHz, crimp/solder, for RG-58, LMR-195, includes connector, contact, ferrule, bulk.

$10.7100Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

31-4700 Technical Specifications
ParameterValue
Mounting typeFree Hanging (In-Line)
Connector typePlug, Male Pin
Fastening typeBayonet Lock
Voltage rating500 V
Frequency - max4 GHz
Cable groupRG-58, 58A, 58B, 58C, 141, 303, LMR-195, Belden B7806A, 9907
Operating temperature-65°C~165°C
Body materialBrass
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBrass
PackageBulk
Includes3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Impedance50Ohm
Body finishNickel
Mating cycles500
Insertion loss0.2dB
Number of ports1
Shield terminationCrimp
Contact terminationCrimp or Solder
Center contact platingSilver

Product details

What This BNC Plug Kit Covers

The Amphenol RF 31-4700 is a BNC plug kit — a male pin connector for 50 Ohm coaxial cable assemblies. It comes as three pieces: the connector body, one center contact, and one ferrule, so you're not sourcing those separately. The 500 mating cycles rating means it's built for test-bench reconnect duty, not just a one-time permanent install.

This plug is designed for a specific group of 50 Ohm coaxial cables: RG-58, 58A, 58B, 58C, 141, 303, LMR-195, Belden B7806A, and 9907. Yes, LMR-195 is on that list — the crimp ferrule and center contact dimensions match the jacket and dielectric diameters of LMR-195. The contact termination can be crimp or solder; the shield is crimped. For a field-terminated RG-58 run, this kit saves tracking down a separate ferrule.

Frequently asked questions

What cable types are compatible with 31-4700?

This plug is designed for RG-58, 58A, 58B, 58C, 141, 303, LMR-195, Belden B7806A, and 9907 coaxial cables.

Does 31-4700 come with a ferrule?

Yes, the kit includes three pieces: the connector body, one center contact, and one ferrule.
