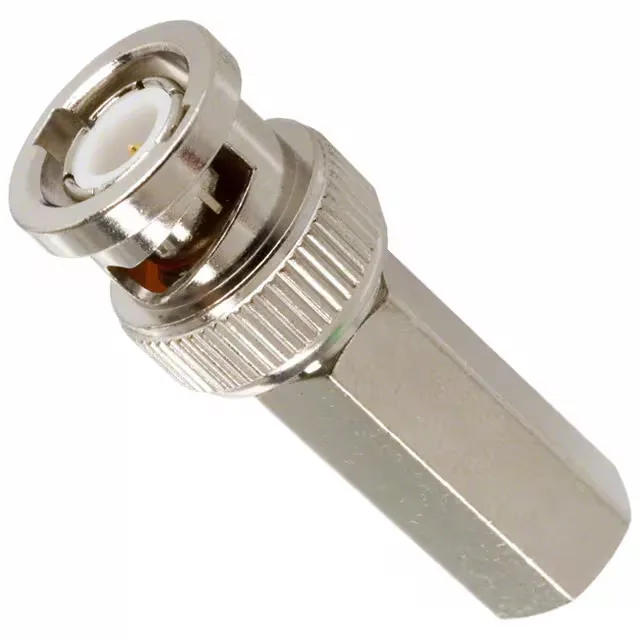

31-5136-RFX — Amphenol product photo
Amphenol

Amphenol RF 31-5136-RFX BNC Plug, 4 GHz, 50 Ohm

MPN31-5136-RFX
Active

Amphenol RF Suretwist® BNC plug, male pin, 50 Ohm, 4 GHz, 500 V, bayonet lock, free-hanging, gold center contact, nickel body, for RG-59/62/140/210 cable, Bulk.

$4.4700Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

31-5136-RFX Technical Specifications
ParameterValue
SeriesSuretwist®
Mounting typeFree Hanging (In-Line)
Connector typePlug, Male Pin
Fastening typeBayonet Lock
Voltage rating500 V
Frequency - max4 GHz
Cable groupRG-59, 59B, 62, 140, 210, Belden 8241, 8263, 8279, 9209
Operating temperature-65°C~165°C
Body materialBrass
Housing colorSilver
Dielectric materialPolyoxymethylene (POM) Acetal
Center contact materialBrass
PackageBulk
Impedance50Ohm
Body finishNickel
Mating cycles500
Insertion loss0.2dB
Number of ports1
Shield terminationTwist On
Contact terminationPush On
Center contact platingGold

Product details

The Amphenol RF 31-5136-RFX is a BNC plug from the Suretwist® series, terminated with a push-on contact and a twist-on shield — the field-installable method that skips soldering the braid.

Cable Fit and Frequency Ceiling

This plug is listed for RG-59, RG-62, RG-140, RG-210, and Belden 8241, 8263, 8279, 9209. Insertion loss is 0.2 dB.

Construction and Plating

Brass body with nickel finish, brass center contact with gold plating, and a polyoxymethylene (POM) acetal dielectric. The gold-on-brass center contact handles the 500 V rating without corrosion creep in a humid or outdoor patch-panel environment. The twist-on shield termination bonds the cable braid to the shell in one motion — no ferrule to crimp, no solder pot to fill.

Frequently asked questions

Is 31-5136-RFX compatible with RG-59 cable?

Yes, the 31-5136-RFX is listed for RG-59, RG-59B, RG-62, RG-140, RG-210, and several Belden equivalents including 8241, 8263, 8279, and 9209.
