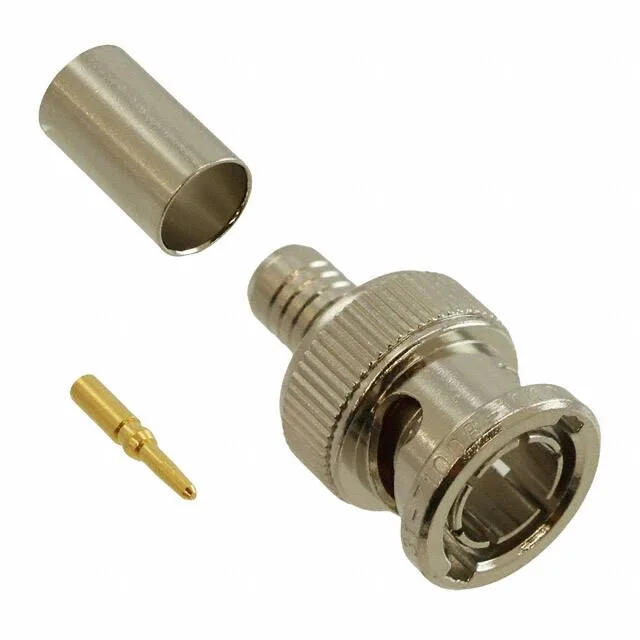

31-71008-1000 — Amphenol product photo
Amphenol

31-71008-1000 Amphenol RF BNC Plug, 75 Ohm, 2 GHz, NRND

MPN31-71008-1000
NRND

Amphenol RF BNC plug, 75 Ohm, 1 port, male pin, crimp/solder termination, bayonet lock, nickel body, for RG-59/62 cable groups, 2 GHz max, 500 V, 500 mating cycles.

$7.6400Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

31-71008-1000 Technical Specifications
ParameterValue
Mounting typeFree Hanging (In-Line)
Connector typePlug, Male Pin
Fastening typeBayonet Lock
Voltage rating500 V
Frequency - max2 GHz
Cable groupRG-59, 59B, 62, 140, 210, Belden 8241, 8263, 8279, 9209
Operating temperature-65°C~165°C
Body materialBrass
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBrass
PackageBulk
Includes3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Impedance75Ohm
Body finishNickel
Mating cycles500
Insertion loss0.2dB
Number of ports1
Shield terminationCrimp
Contact terminationCrimp or Solder
Center contact platingGold

Product details

The 31-71008-1000: The 75 Ohm impedance marks it for video distribution, CCTV, and broadcast applications rather than the 50 Ohm RF bench standard — a critical distinction when matching system impedance.

Cable Compatibility and Termination — Sizing the Ferrule to the Jacket

This BNC plug is specified for RG-59, RG-59B, RG-62, RG-140, RG-210, and the Belden 8241, 8263, 8279, and 9209 cable types. The included crimp ferrule is sized for the outer jacket diameter of these cables — using a different cable group risks poor shield termination and degraded return loss. For a clean 75 Ohm termination, the cable prep must follow the manufacturer's strip lengths — the centre conductor exposure and braid trim directly affect the impedance through the connector interface. The 0.2 dB insertion loss figure assumes a proper termination on a listed cable type.

This means the manufacturer continues to support existing production but advises against specifying it for new projects. For existing BOM lines, the NRND status means lead time and availability should be confirmed at each procurement cycle.

The 2 GHz maximum frequency and 0.2 dB insertion loss define the signal path for composite video, SDI, and baseband data links up to that ceiling. The 500 V voltage rating covers the isolation requirement for equipment operating on mains-referenced supplies.

Frequently asked questions

Where can I buy 31-71008-1000 and what is the current price?

Submit an RFQ for your quantity to get a firm quote and lead time.

Is 31-71008-1000 obsolete or end of life?

31-71008-1000 is classified as NRND (Not Recommended for New Designs). It is not fully obsolete — the manufacturer still supports existing production — but it is not recommended for new projects. No official replacement part number has been published.

What cable types work with 31-71008-1000?

This BNC plug is compatible with RG-59, RG-59B, RG-62, RG-140, RG-210, and Belden 8241, 8263, 8279, and 9209 cables. The included crimp ferrule is sized for the jacket diameter of these specific types.
