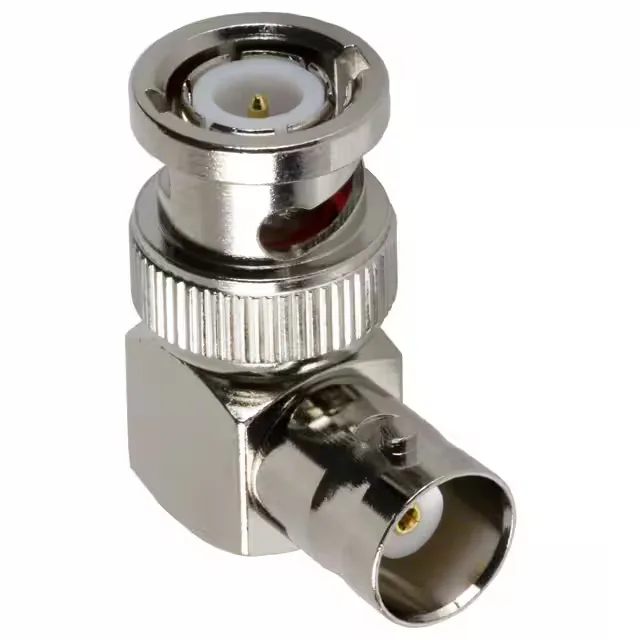

31-9-RFX — Amphenol product photo
Amphenol

Amphenol RF 31-9-RFX BNC to BNC Right Angle Adapter, 50 Ohm

MPN31-9-RFX
Active

Amphenol RF BNC to BNC right angle adapter, 31-9-RFX, 50 Ohm impedance, 4 GHz max frequency, Plug to Jack (Male to Female), Nickel-plated brass body, Gold-plated center contacts, Free-hanging in-line mount, Bulk package.

$11.2200Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

31-9-RFX Technical Specifications
ParameterValue
Adapter typePlug to Jack
Mounting typeFree Hanging (In-Line), Right Angle
Adapter seriesBNC to BNC
Fastening typeBayonet Lock, Bayonet Lock
Conversion typeSame Series
Frequency - max4 GHz
Operating temperature-65°C~165°C
Body materialBrass
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBeryllium Copper; Brass
StyleRight Angle
PackageBulk
Impedance50Ohm
Body finishNickel
Center genderFemale to Male
Mating cycles500
Center contact platingGold
Convert to (Adapter end)BNC Jack, Female Socket
Convert from (Adapter end)BNC Plug, Male Pin

Product details

What This BNC Adapter Does in the RF Path

The 31-9-RFX: It is a same-series gender-changer, not a between-series converter — both ends are BNC interfaces with bayonet-lock fastening. The right-angle body lets the cable exit perpendicular to the adapter axis, useful where a straight adapter would force a bend radius violation or crowd adjacent ports.

A 50 Ohm adapter inserted into a 50 Ohm line keeps the characteristic impedance continuous. The 4 GHz max frequency covers cellular, Wi-Fi, broadcast TV, and instrumentation signals.

Mechanical Construction and Mating Cycle Life

The body is machined brass with a nickel finish — nickel provides good corrosion resistance and a consistent surface for the bayonet-lock coupling nut to engage. The center contacts are gold-plated: the male pin is beryllium copper (spring temper for repeated mating), the female socket is brass.

Frequently asked questions

Where can I buy the Amphenol 31-9-RFX right angle BNC adapter?

Buyers need to find authorized distributors and compare stock/pricing to make a purchase decision.

What is the impedance of 31-9-RFX and is it 50 ohm?

Impedance is critical for signal integrity; mismatched impedance can cause reflection and loss.

Is 31-9-RFX a male to female or female to male adapter?

Gender configuration determines how the adapter connects to existing cables or ports.

What is the price and stock status of 31-9-RFX?

Pricing and availability directly affect procurement speed and cost for BOM fulfillment.

Does 31-9-RFX have an equivalent or cross-reference part?

When stock is low, buyers need alternative MPNs from other brands that are drop-in compatible.

What is the body finish and material of 31-9-RFX?

Material and finish affect durability, corrosion resistance, and suitability for specific environments.
