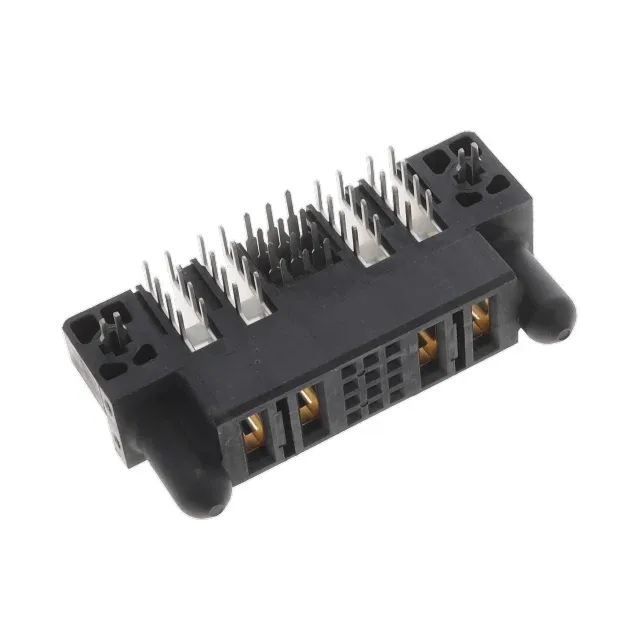

Amphenol 51760-10201202AALF
MPN51760-10201202AALF
Active
CONN RCPT BLADE PWR 16P EDGE MNT
$6.52Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesPwrBlade®
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | PwrBlade® |
| Mounting | Board Edge, Through Hole, Right Angle |
| Connector type | Receptacle, Female Sockets and Blade Sockets |
| Operating temperature | -20°C ~ 105°C |
| Color | Black |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.100\" (2.54mm) |
| Package | Tray |
| Features | Board Lock, Guide Pin |
| Termination | Solder |
| Contact finish | Gold or Gold, GXT™ |
| Rows | 4 |
| Positions | 16 |
| Contact layout, typical | 12 Signal, 4 Power |
| Contact finish thickness | 30.0µin (0.76µm) |
