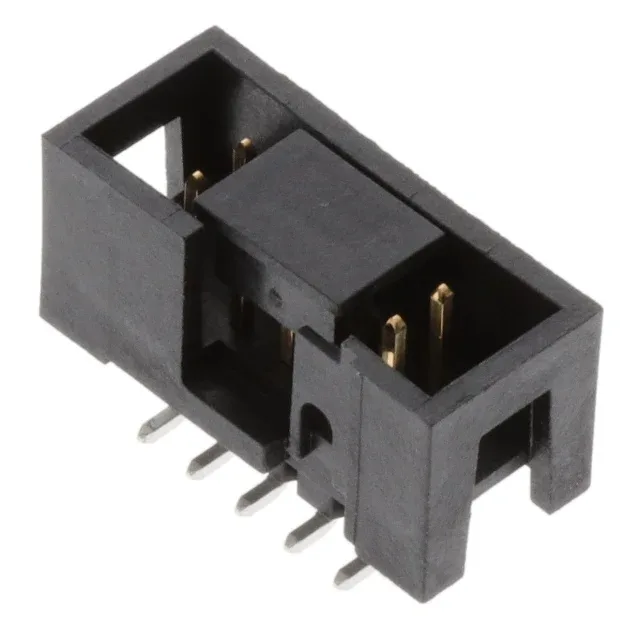

52601-G10-8TLF Header – Amphenol Quickie 10-Pos 2.54mm SMT

MPN52601-G10-8TLF
Active

Amphenol ICC (FCI) Quickie™ header, 10 positions, 2 rows, 0.100" (2.54mm) pitch, surface-mount, shrouded 4-wall, male pin, push-pull fastening, 30µin gold or GXT™ mating finish, tin post finish, UL94 V-0, -65°C~105°C.

$2.5500Ref. price · indicative, final on quote
52601-G10-8TLF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

52601-G10-8TLF Technical Specifications
ParameterValue
SeriesQuickie™
GenderMale Pin
Mounting typeSurface Mount
Connector typeHeader
Fastening typePush-Pull
Operating temperature-65°C~105°C
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.365\" (9.27mm)
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesPick and Place
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions10
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact finish - matingGold or Gold, GXT™
Contact length - mating0.230\" (5.84mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

10-Pin Dual-Row 2.54mm Pitch – What It Fits

The 52601-G10-8TLF: The 0.230" (5.84mm) mating pin length gives enough engagement depth for standard receptacles without bottoming out on short housings.

Plating and Contact Life

The post (solder tail) uses 100µin (2.54µm) tin – thick enough to maintain solderability after extended shelf storage.

SMT Assembly and Pick-and-Place Ready

Surface-mount termination with pick-and-place feature means this header is designed for automated reflow assembly. The tape-and-reel packaging feeds directly into placement machines – no hand-loading for volume builds. The 0.365" (9.27mm) insulation height gives clearance under the shroud for trace routing on the top layer of the PCB.

Environmental and Safety Ratings

RoHS compliant – no lead, cadmium, or other restricted substances in the plating or housing.

Frequently asked questions

Is 52601-G10-8TLF compatible with standard 2.54mm IDC cables?

The 0.230" (5.84mm) mating pin length engages fully with the socket's contact beams. Confirm the socket's shroud clearance matches the 0.365" (9.27mm) insulation height.
