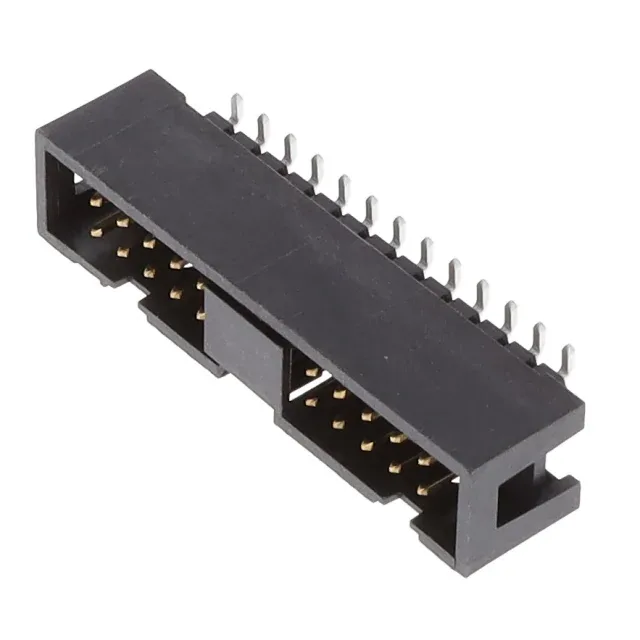

Amphenol ICC (FCI) Quickie™ series, 52601-G26-8TLF, 26-position, 2-row, 0.100" (2.54mm) pitch, SMD shrouded header, male pin, 30.0µin gold mating contact finish, UL94 V-0, -65°C to 105°C.
| Parameter | Value |
|---|---|
| Series | Quickie™ |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Fastening type | Push-Pull |
| Operating temperature | -65°C~105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.365\" (9.27mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Parameter | Value |
|---|---|
| Features | Pick and Place |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 26 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 52601-G26-8TLF is a 26-position, 2-row, 0.100" (2.54mm) pitch shrouded header from the Quickie™ series by Amphenol ICC (FCI). The header is surface-mount (SMD) and includes a pick-and-place feature for automated assembly.
This header mates with Quickie™ series IDC sockets or other compatible 0.100" pitch receptacles. The push-pull fastening type provides secure retention without additional hardware. Termination is solder-only; the SMD pads are designed for reflow soldering.
Submit an RFQ for current availability and pricing against your BOM quantity.
The push-pull latch on the header matches the socket's locking ramp.
