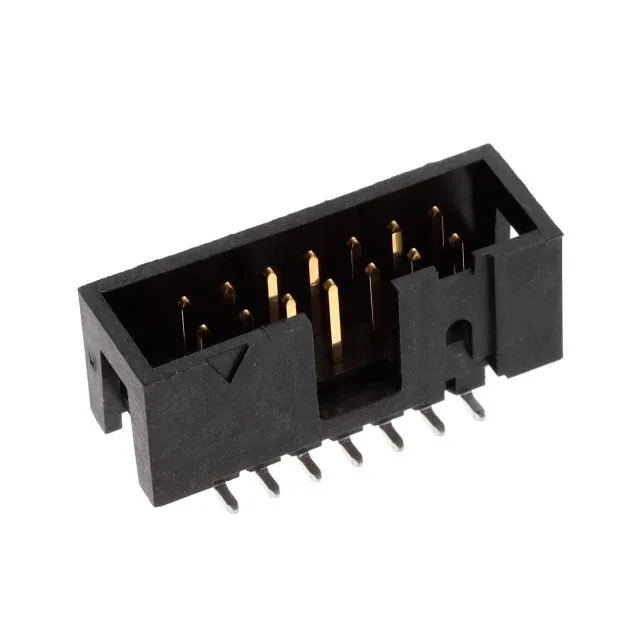

Amphenol ICC (FCI) Quickie™ 52601-S14-8LF, 14-position dual-row shrouded header, 0.100" (2.54 mm) pitch, surface-mount, gold/GXT™ mating finish, UL94 V-0 black housing
| Parameter | Value |
|---|---|
| Series | Quickie™ |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Fastening type | Push-Pull |
| Operating temperature | -65°C~105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.365\" (9.27mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Tray |
| Parameter | Value |
|---|---|
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 14 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 52601-S14-8LF: Surface-mount termination suits automated pick-and-place assembly, and the 0.365" (9.27 mm) insulation height provides clearance for board-level components under the header body.
With 14 positions in two rows spaced 0.100" (2.54 mm) apart, the header occupies a 7-position-per-row grid.
Yes, the 52601-S14-8LF is RoHS compliant per the manufacturer's listing.
