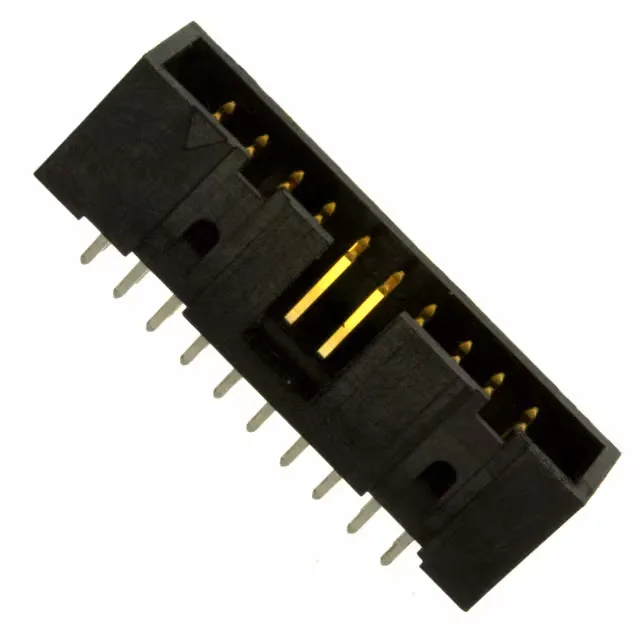

Amphenol ICC (FCI) Quickie™ series, 52601-S20-4LF, 20-position dual-row male header, 0.100" (2.54mm) pitch, through-hole solder termination, shrouded 4-wall, gold or GXT™ mating finish, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | Quickie™ |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.365\" (9.27mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Tray |
| Parameter | Value |
|---|---|
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 20 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.120\" (3.05mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The push-pull fastening type allows tool-less engagement and disengagement, suitable for panel access or modular assemblies. The insulation height of 0.365" (9.27mm) and mating pin length of 0.230" (5.84mm) provide clearance for standard IDC connectors and board stacking.
The 52601-S20-4LF is sourced per RFQ through independent distribution. Submit a request for quote to confirm availability and pricing for your target quantity.
Confirm the mating half's keying and row spacing (0.100") for compatibility.
