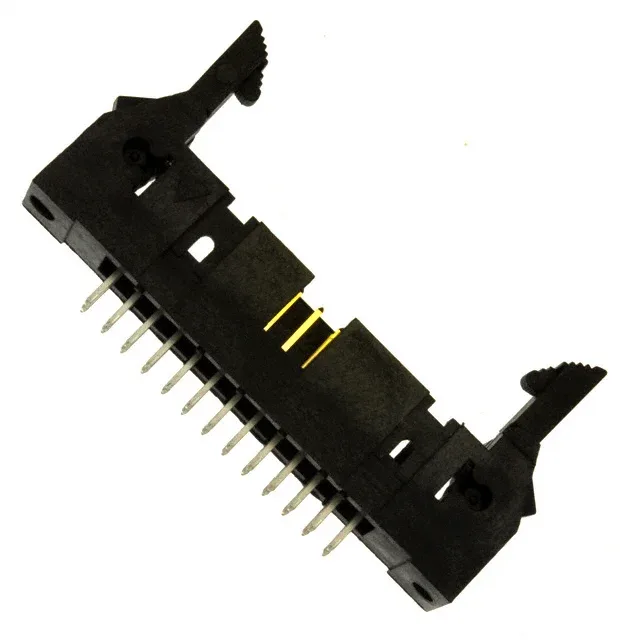

26-Pin Quickie Header — Board-to-Cable Fit
A keying slot on the header prevents mis-mating with non-matching receptacles, a common assembly error in multi-connector panels.
Amphenol ICC (FCI) Quickie™ series, 26-position dual-row header, 0.100" (2.54 mm) pitch, through-hole, shrouded, latch lock/eject hooks, gold or GXT™ mating finish, RoHS.
$5.2100Ref. price · indicative, final on quote
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | Quickie™ |
| Gender | Male Pin |
| Mounting type | Through Hole |
| Connector type | Header |
| Fastening type | Latch Lock/Eject Hooks |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.640\" (16.26mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 26 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.150\" (3.81mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
Product details
Frequently asked questions
Where can I buy 53611-S26-6LF?
Sourced through independent distribution channels.
What is the mating connector for 53611-S26-6LF?
This header mates with a Quickie™ series receptacle housing (female, typically 26 positions, 0.100" pitch) that accepts the matching crimp terminals. The latch lock/eject hooks on the header engage with the receptacle's locking slots.
