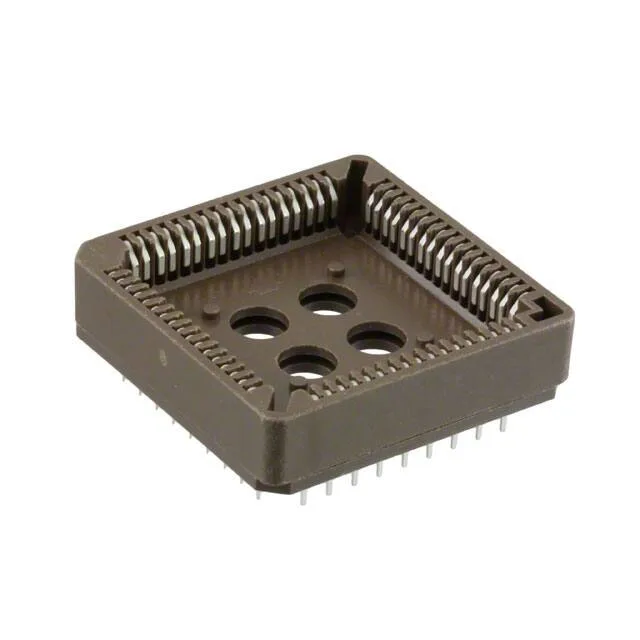

Amphenol 54020-68030LF
MPN54020-68030LF
Obsolete
$0.5500Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | PLCC |
| Mounting | Through Hole |
| Current rating | 1 A |
| Operating temperature | -40°C~105°C |
| Housing material | Polyphenylene Sulfide (PPS) |
| Contact material - post | Copper Alloy |
| Contact material - mating | Copper Alloy |
| Material flammability rating | UL94 V-0 |
| Package | Tube |
| Features | Closed Frame |
| Termination | Solder |
| Pitch - post | 0.100\" (2.54mm) |
All specifications
| Parameter | Value |
|---|---|
| Pitch | 0.050\" (1.27mm) |
| Contact resistance | 20mOhm |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Termination post length | 0.126\" (3.20mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
| Number of positions or pins | 68 (4 x 17) |
