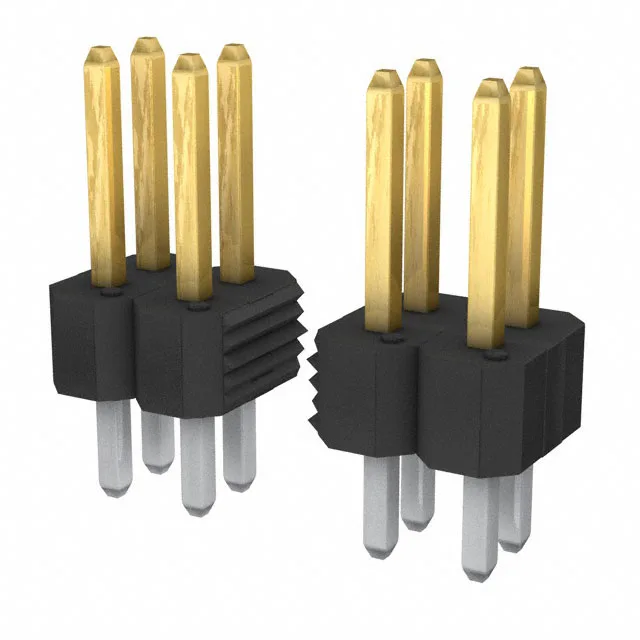

Amphenol ICC (FCI) BERGSTIK® unshrouded header, 54102-G0810LF, 20 positions dual-row, 0.100" (2.54mm) pitch, male pin, through-hole solder termination, gold or GXT™ mating finish, 3 A per contact, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3A per Contact |
| Operating temperature | -65°C ~ 125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Parameter | Value |
|---|---|
| Package | Bag |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 20 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.120\" (3.05mm) |
| Overall contact length | 0.450\" (11.43mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 54102-G0810LF: The 0.100" row spacing and 0.100" pitch create a 20-pin dual-row footprint that fits standard 0.100" grid prototyping boards.
RoHS compliance is standard for the LF (lead-free) suffix. The UL94 V-0 rating is listed on the housing material.
It is unshrouded — the pins are exposed with no plastic shroud. The mating receptacle must provide its own keying or alignment.
0.100" (2.54mm) pitch both between pins and between rows — standard for breadboard and ribbon-cable interfaces.
