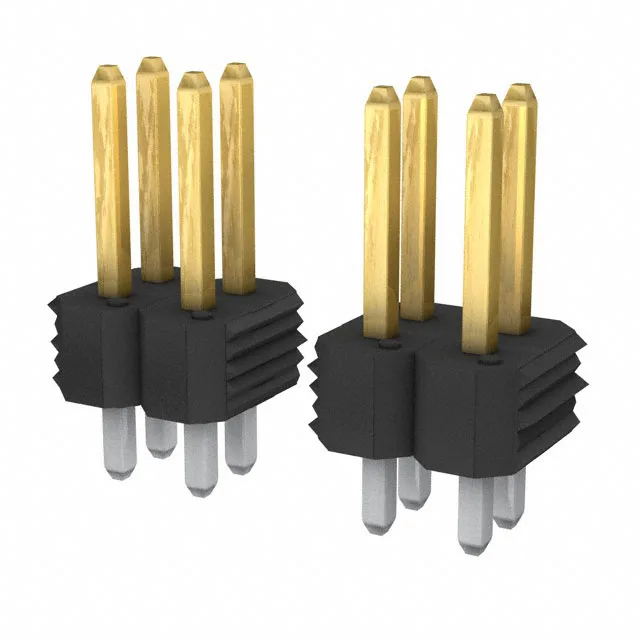

Amphenol ICC (FCI) BergStik® header, order code 54102-S0500LF, unshrouded, 0.100" (2.54 mm) pitch, 45000 positions cuttable, dual row, through hole, solder termination, male pin, gold or GXT™ mating finish, 3 A per contact.
54102-S0500LF Amphenol ICC (FCI) BergStik Header, Unshrouded
MPN54102-S0500LF
Active
Amphenol ICC (FCI) BergStik® header, order code 54102-S0500LF, unshrouded, 0.100" (2.54 mm) pitch, 45000 positions cuttable, dual row, through hole, solder termination, male pin, gold or GXT™ mating finish, 3 A per contact.
$0.7400Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3A per Contact |
| Operating temperature | -65°C~125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
All specifications
| Parameter | Value |
|---|---|
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 45000, Cuttable |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.095\" (2.41mm) |
| Overall contact length | 0.425\" (10.80mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
Product details
Frequently asked questions
What is the listed style of the 54102-S0500LF?
The style is Board to Board or Cable, meaning it can mate with a receptacle on another PCB or terminate to a cable assembly.
