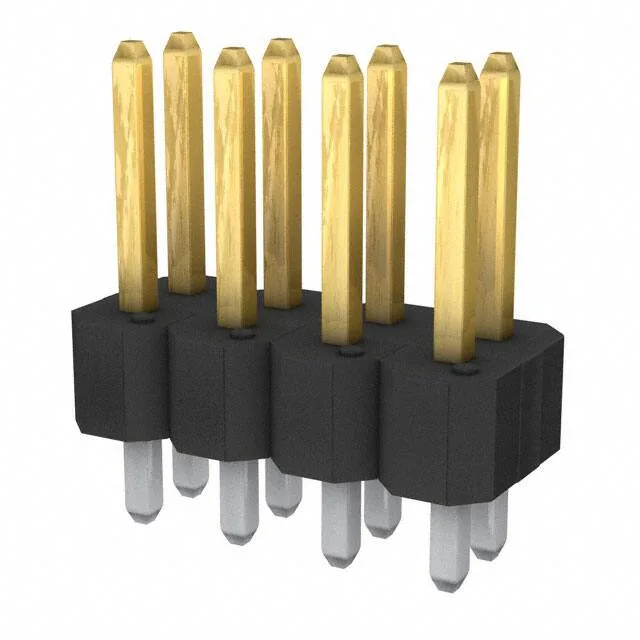

Amphenol ICC (FCI) BERGSTIK® unshrouded header, 8 positions, dual-row, 0.100" (2.54mm) pitch, through-hole solder termination, gold or GXT™ mating finish, rated 3A per contact, UL94 V-0 black housing.
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3A per Contact |
| Operating temperature | -65°C~125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Parameter | Value |
|---|---|
| Package | Bag |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 8 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.095\" (2.41mm) |
| Overall contact length | 0.425\" (10.80mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 54102-S0504LF: The closest functional alternative is the 54102-S3005LF — same dual-row, 0.100" pitch, gold mating finish, and 3A rating, but with 10 positions instead of 8.
The UL94 V-0 rating means the housing will not sustain flame in equipment inside an enclosure.
Submit an RFQ for current pricing and lead time — availability is confirmed at quote time.
Any 0.100" (2.54mm) pitch receptacle housing with 8 positions and dual-row layout will mate — common choices include BERGSTIK® socket strips or industry-standard IDC receptacles. The unshrouded header has no keying, so the mating half must be aligned by the PCB or harness.
The 54102-S3005LF is the nearest functional alternative — same series, pitch, plating, and current rating, but with 10 positions instead of 8. For an exact 8-position fit, this 54102-S0504LF is the correct part.
