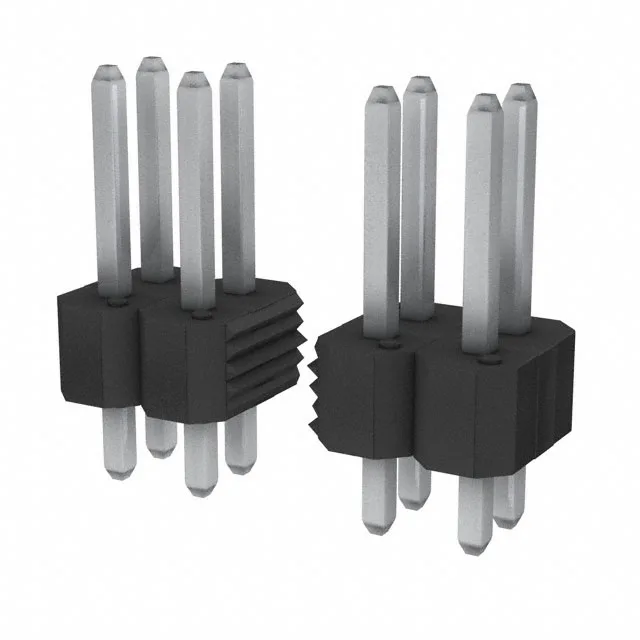

54102-T0507LF BERGSTIK® Header 14-Pin 2.54mm Unshrouded

MPN54102-T0507LF
Active

Amphenol ICC (FCI) BERGSTIK® series, 54102-T0507LF, unshrouded pin header, 14 circuits, 2.54mm pitch, dual row, through-hole solder termination, tin-plated contacts, rated 3A per contact.

$0.4465Ref. price · indicative, final on quote
54102-T0507LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

54102-T0507LF Technical Specifications
ParameterValue
SeriesBERGSTIK®
GenderMale Pin
Mounting typeThrough Hole
Connector typeHeader
Fastening typePush-Pull
Current rating3A per Contact
Operating temperature-65°C~125°C
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.100\" (2.54mm)
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable
PackageBulk
ShroudingUnshrouded
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions14
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.095\" (2.41mm)
Overall contact length0.425\" (10.80mm)
Contact finish - matingTin
Contact length - mating0.230\" (5.84mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating100.0µin (2.54µm)

Product details

Board Layout Fit: 2.54mm Pitch, Unshrouded, Dual Row

Two rows at 0.100" row spacing give 14 positions in a compact, 7-per-row arrangement.

Current and Contact: Tin-Plated, 3A per Pin

Tin is the workhorse finish for moderate-cycle applications — it handles 50-100 mating cycles in a lab or production test fixture, but the plating thickness here (100µin) is heavier than typical flash tin, which improves wear life. The UL94 V-0 housing ensures the header does not propagate flame inside the equipment enclosure.

Frequently asked questions

Is 54102-T0507LF a shrouded or unshrouded header?

It is an unshrouded header — there is no plastic shroud around the pins. The mating receptacle must provide its own alignment and keying; the pins are exposed for probing or stacking.

What is the pitch and row configuration of 54102-T0507LF?

The mating pitch is 0.100" (2.54mm) with a row-to-row spacing of 0.100" (2.54mm). It is a dual-row header with 14 positions, all loaded.
