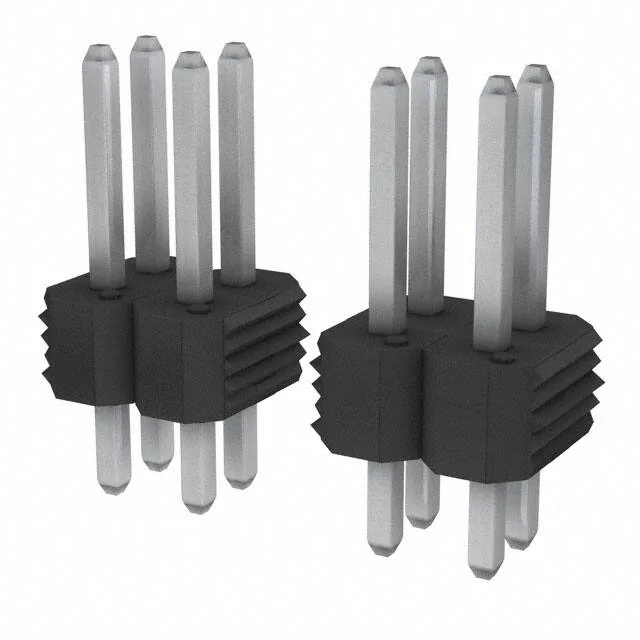

Amphenol 54102-T06-00
MPN54102-T06-00
Active
CONN HEADER VERT 45000POS 2.54MM
$0.1Ref. price · indicative, final on quote
RoHSRoHS non-compliant
SeriesBERGSTIK®
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3A per Contact |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Tape & Reel (TR); Cut Tape (CT) |
All specifications
| Parameter | Value |
|---|---|
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 45000, Cuttable |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact length - post | 0.110\" (2.79mm) |
| Overall contact length | 0.440\" (11.18mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
