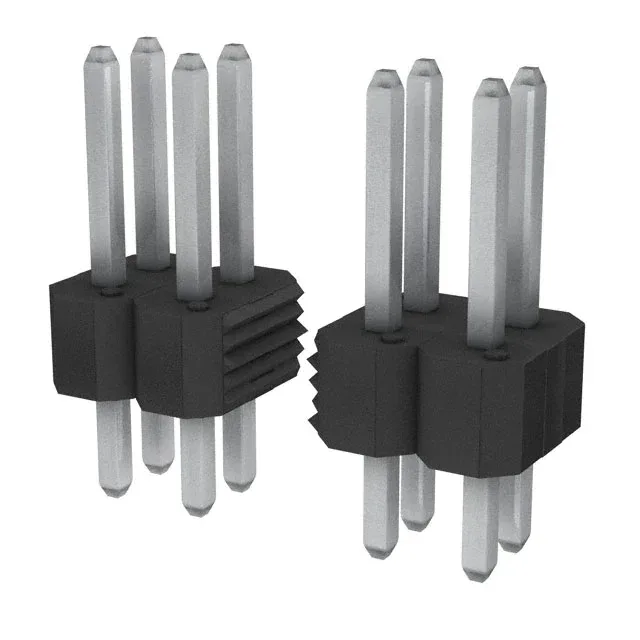

54102-T0808LF — Amphenol product photo
Amphenol

54102-T0808LF BERGSTIK® Header – 16 Pos, 0.100" Pitch

MPN54102-T0808LF
Active

Amphenol ICC (FCI) BERGSTIK® unshrouded header, 16 circuits, dual-row, 0.100" (2.54 mm) pitch, through-hole, tin-plated male pins, 3 A per contact, UL94 V-0 black housing.

$1.3900Ref. price · indicative, final on quote
54102-T0808LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

54102-T0808LF Technical Specifications
ParameterValue
SeriesBERGSTIK®
GenderMale Pin
Mounting typeThrough Hole
Connector typeHeader
Fastening typePush-Pull
Current rating3A per Contact
Operating temperature-65°C~125°C
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.100\" (2.54mm)
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable
PackageBulk
ShroudingUnshrouded
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions16
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.120\" (3.05mm)
Overall contact length0.450\" (11.43mm)
Contact finish - matingTin
Contact length - mating0.230\" (5.84mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating100.0µin (2.54µm)

Product details

Board Footprint and Current Budget

The 54102-T0808LF: Dual-row layout with 0.100" row spacing means the 16 positions occupy 0.800" of board edge, typical for a parallel-wire or IDC cable interface. Tin plating is cost-effective for fixed-wire or low-cycle use.

Unshrouded Through-Hole Build

Unshrouded header with push-pull fastening — no latch, no polarization key. The mating half must be oriented correctly during assembly; the square pins provide visual alignment. Through-hole termination gives mechanical hold against cable strain, better than an SMT header on the same footprint. The post sits flush in a 0.125" board — standard through-hole solder process.

Frequently asked questions

What does the 0.100" pitch mean for my board layout?

The dual-row spacing is also 0.100", so the 16 positions fit in 0.800" along the board edge.

How can I order 54102-T0808LF / check stock / request a quote?

Availability and current pricing confirmed at quote time.
