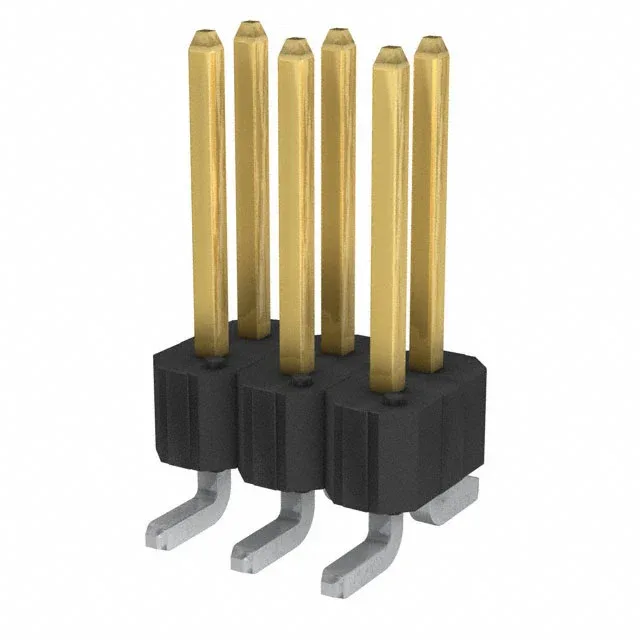

Amphenol ICC (FCI) BERGSTIK® header, order code 54202-G3003LF, 6 positions, dual row, 0.100" (2.54 mm) pitch, 3 A, gold-plated mating contacts, surface-mount, solder termination, unshrouded, UL94 V-0 black housing.
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -65°C~130°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Parameter | Value |
|---|---|
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 6 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.318\" (8.08mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Within the BERGSTIK® 54202 series, the 6-position 54202-G3003LF sits below the 8-position 54202-G0804LF and the 14-position 54202-G0807LF — the pitch, footprint, and gold plating are shared across the series, so the position count alone drives circuit fit.
