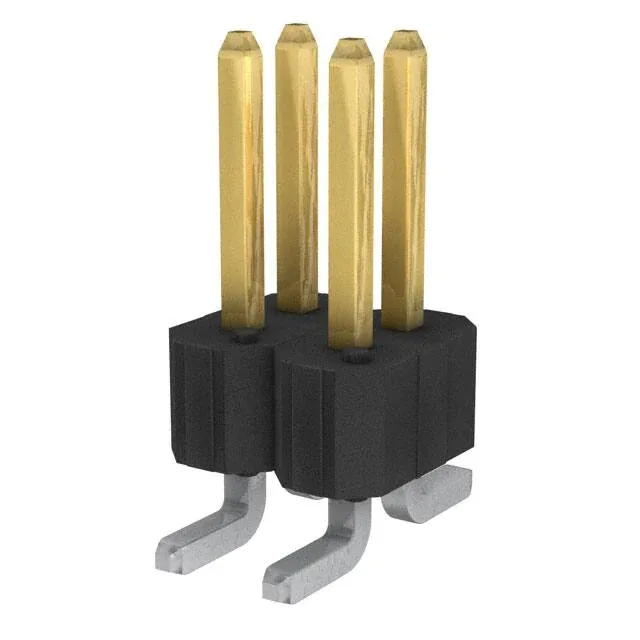

54202-S0802LF BERGSTIK® 4-Pin Unshrouded Header

MPN54202-S0802LF
Active

Amphenol ICC (FCI) BERGSTIK® 54202-S0802LF, 4-position unshrouded male pin header, 0.100" (2.54 mm) pitch, dual-row, surface mount, gold-plated mating contacts, rated 3 A, UL94 V-0.

$0.3670Ref. price · indicative, final on quote
54202-S0802LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

54202-S0802LF Technical Specifications
ParameterValue
SeriesBERGSTIK®
GenderMale Pin
Mounting typeSurface Mount
Connector typeHeader
Fastening typePush-Pull
Current rating3A
Operating temperature-65°C~130°C
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.100\" (2.54mm)
Material flammability ratingUL94 V-0
StyleBoard to Board
PackageBulk
ShroudingUnshrouded
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions4
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact finish - matingGold or Gold, GXT™
Contact length - mating0.230\" (5.84mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating15.0µin (0.38µm)

Product details

4-Pin BERGSTIK® Unshrouded Header — 0.100" Pitch, SMT

The 54202-S0802LF: The unshrouded design gives you direct access to the square pins for wire-wrapping or low-profile board stacking, but it offers no keying — alignment relies on the PCB footprint and mating receptacle.

Surface-Mount Termination and Board Fit

Termination is surface-mount solder — no through-holes, so the board backside stays clear for routing. The tin post finish is compatible with lead-free reflow profiles; the gold mating face resists oxidation in storage or low-current circuits where tin whiskers are a concern.

Frequently asked questions

What is the pin count of the 54202-S0802LF?

The 54202-S0802LF is a 4-position header, dual-row, with all positions loaded.

Is the 54202-S0802LF RoHS compliant?

The part number suffix 'LF' indicates lead-free (RoHS-compliant) construction. The contact finish includes tin and gold, both RoHS-compatible materials.

What is the closest pin-compatible alternative to the 54202-S0802LF in the BERGSTIK® series?

The 54202 base product number covers a range of 4-position headers with varying plating and termination options — confirm the specific SMT, gold mating finish variant before substituting.
