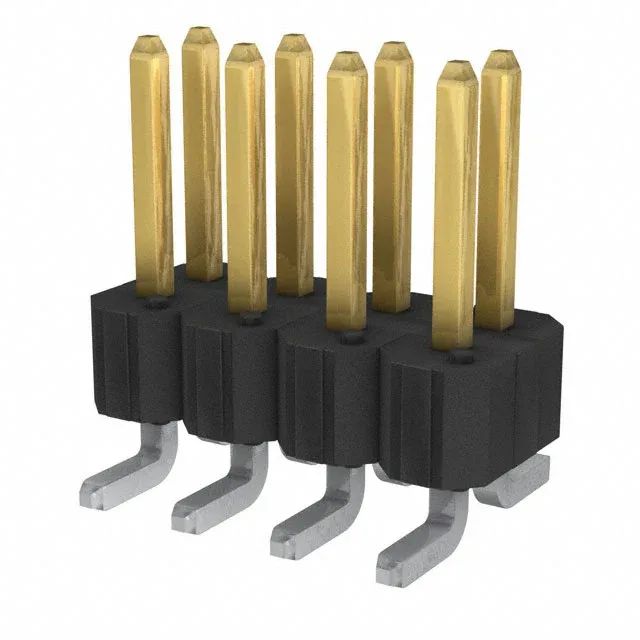

Amphenol ICC (FCI) BERGSTIK® unshrouded header, 8 circuits, dual row, 0.100" (2.54 mm) pitch, surface-mount solder tails, gold-over-nickel mating finish, rated 3 A per contact.
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Gender | Male Pin |
| Mounting type | Surface Mount |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -65°C~130°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Bag |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 8 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 54202-S0807LF is the 14-position sibling in the same BERGSTIK® series, identical in pitch, plating, and current rating — a direct drop-in for higher circuit-count BOMs. The 54202-S0804CLF and 54202-S0804ALF are the tape-and-reel packaged versions of this 8-position header, adding a Pick and Place feature for automated assembly — the bagged 54202-S0804LF is the manual-assembly or low-volume option.
It mates with any 0.025" square-post receptacle on the same pitch.
The 54202-S0807LF is the 14-position sibling in the same BERGSTIK® series, identical in pitch, plating, and current rating. For the same 8-position count, the tape-and-reel variants 54202-S0804CLF or 54202-S0804ALF add Pick and Place capability.
