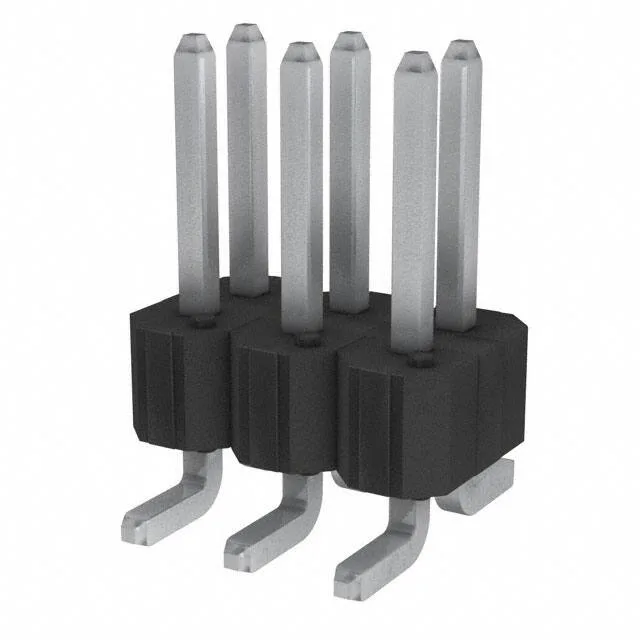

54202-T0803LF Amphenol ICC (FCI) BERGSTIK® 6-Pin Header

MPN54202-T0803LF
Active

Amphenol ICC (FCI) BERGSTIK® unshrouded header, 54202-T0803LF, 6 positions, 2 rows, 0.100" (2.54 mm) pitch, surface mount, tin-plated contacts, 3 A, UL94 V-0.

$0.3128Ref. price · indicative, final on quote
54202-T0803LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

54202-T0803LF Technical Specifications
ParameterValue
SeriesBERGSTIK®
GenderMale Pin
Mounting typeSurface Mount
Connector typeHeader
Fastening typePush-Pull
Current rating3A
Operating temperature-65°C~130°C
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.100\" (2.54mm)
Material flammability ratingUL94 V-0
StyleBoard to Board
PackageBag
ShroudingUnshrouded
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions6
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact finish - matingTin
Contact length - mating0.230\" (5.84mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating100.0µin (2.54µm)

Product details

0.100" Pitch, 6-Position, Dual-Row Header for Board-to-Board

The 6 positions are fully loaded, and the push-pull fastening type allows quick mating without a locking latch. The UL94 V-0 housing ensures flame retardancy for equipment inside enclosures requiring safety compliance.

Surface Mount Termination with 0.230" Mating Pin Length

This header uses surface mount (SMT) termination, which means the pins are soldered directly to pads on the PCB surface — no through-holes required. The black insulation color and square pin shape (0.025" square typical for BERGSTIK®) are standard for automated assembly.

The base product number 54202 covers the BERGSTIK® series; the T0803LF suffix specifies the 6-position, dual-row, tin-plated SMT configuration.
