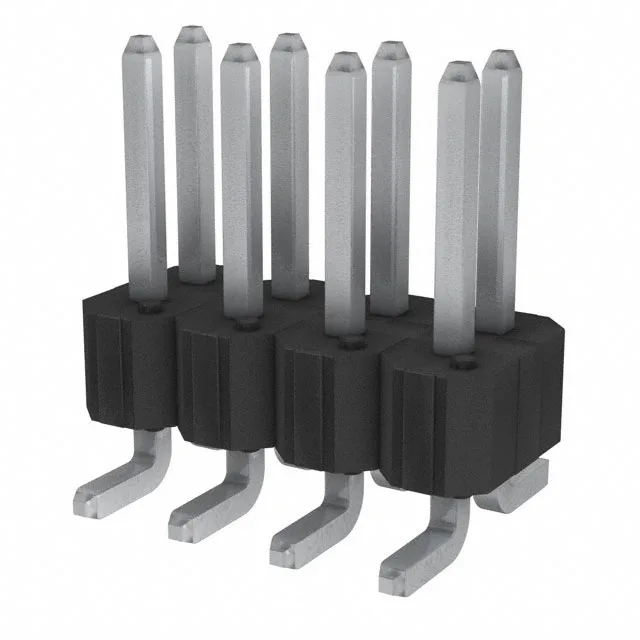

Amphenol ICC (FCI) BERGSTIK® series, unshrouded male pin header, 8 circuits, dual-row, 0.100" (2.54 mm) pitch, surface-mount termination, tin-plated contacts, UL94 V-0 black housing.
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -65°C ~ 130°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Parameter | Value |
|---|---|
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 8 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
The 54202-T0804LF: The 8 positions are loaded fully across two rows, giving a 2x4 layout. No keying or polarization — the board layout must provide the alignment.
In a board-to-board interconnect that is mated once at assembly and rarely cycled, this is a reliable, cost-effective finish.
The part is RoHS-compliant per the LF suffix in the order code.
The 54202-T0804LF is an active part sourced through independent distribution. No stock-holding claim is made — each order is sourced per the BOM line.
0.100" (2.54 mm) on both the mating pitch and the row spacing.
Yes — the LF suffix in the order code indicates RoHS compliance.
No keying or locking feature is provided.
No — the fastening type is push-pull, meaning the connector relies on friction and the solder joint for retention.
