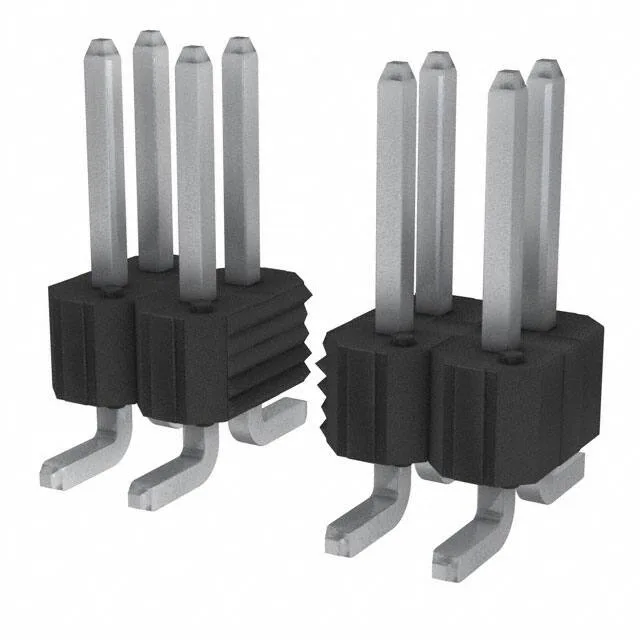

54202-T0806ALF Amphenol ICC BERGSTIK® Header SMD 12 Pos

MPN54202-T0806ALF
Active

Amphenol ICC (FCI) BERGSTIK® unshrouded header, 54202-T0806ALF, 12 positions, 0.100" (2.54 mm) pitch, dual-row, SMD, tin-on-tin contacts rated 3 A, UL94 V-0 black housing.

$1.0100Ref. price · indicative, final on quote
54202-T0806ALF datasheet
StockContact for availability
Lead time3-5 Days wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

54202-T0806ALF Technical Specifications
ParameterValue
SeriesBERGSTIK®
GenderMale Pin
Mounting typeSurface Mount
Connector typeHeader
Fastening typePush-Pull
Current rating3A
Operating temperature-65°C~130°C
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.100\" (2.54mm)
Material flammability ratingUL94 V-0
StyleBoard to Board
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesPick and Place
ShroudingUnshrouded
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions12
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact finish - matingTin
Contact length - mating0.230\" (5.84mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating100.0µin (2.54µm)

Product details

0.100" Pitch, 12 Positions, Tin-on-Tin — BOM Fit First

The 54202-T0806ALF: Twelve positions loaded all the way means every circuit is wired; no blank spots to track. The mating interface is tin on tin, 100 µinch on both the contact finish and the post. This is a cost-optimised signal path for moderate cycle life — think one-time board assembly, not repeated field disconnect. For higher mating-cycle duty, the gold-plated siblings in the same series (54202-S0804CLF or 54202-G0807LF) are the better call.

SMD Unshrouded — Board-Layout Fit and Pick-and-Place Ready

Surface-mount termination with a pick-and-place feature means this header is designed for automated assembly — the flat top gives the vacuum nozzle a clean grab.

RoHS compliant.
