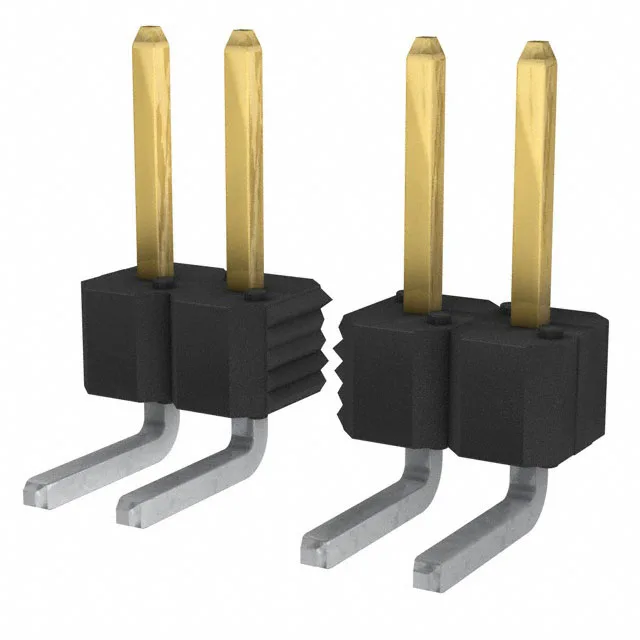

Molex BERGSTIK 55101-G17-36, 36-pos 2.54mm Header, 5A

MPN55101-G17-36
Active

Molex BERGSTIK® 55101-G17-36, 36-position single-row 0.100" (2.54 mm) board-to-board header, right-angle through-hole, push-pull; phosphor bronze male pins, gold GXT™ plating 30 µ" on mating surface, rated 5 A per circuit at 110 V, UL94 V-0.

$1.6140Ref. price · indicative, final on quote
55101-G17-36 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

55101-G17-36 Technical Specifications
ParameterValue
SeriesBERGSTIK®
GenderMale Pin
Mounting typeThrough Hole, Right Angle
Connector typeHeader
Fastening typePush-Pull
Voltage rating110V
Current rating5A
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.140\" (3.56mm)
Material flammability ratingUL94 V-0
StyleBoard to Board
PackageBulk
ShroudingUnshrouded
TerminationSolder
Contact shapeSquare
Rows1
Pitch0.100\" (2.54mm)
Positions36
Contact length - post0.120\" (3.05mm)
Contact finish - matingGold, GXT™
Contact length - mating0.230\" (5.84mm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

Board-to-Board Header for 36-Circuit BOM Lines

The 0.100" (2.54 mm) pitch is a standard footprint for prototyping and production boards, matching legacy 0.1" grid layouts. Gold GXT™ plating at 30 µ" on the mating side handles repeated insertions without fretting corrosion, typical for field-serviceable or test-point applications.

Termination is solder through-hole; the post length is 0.120" (3.05 mm) for the solder tail, and the mating pin length is 0.230" (5.84 mm).

The BERGSTIK series is a long-running standard, so pin-compatible alternatives from the same family may exist — confirm the exact plating and post length for your application.

Frequently asked questions

What is the current rating of 55101-G17-36?

The current rating is 5 A per circuit at the stated voltage of 110 V. This is a per-contact rating; derate above ambient temperature per the manufacturer's guidelines.

What is the recommended mating connector for 55101-G17-36?

This unshrouded header mates with any standard 0.100" (2.54 mm) pitch, 36-position, single-row receptacle housing, such as a BERGSTIK IDC socket or a compatible crimp housing. The push-pull interface means no locking latch is required.

What is the pin length of Molex 55101-G17-36?

The mating pin length is 0.230" (5.84 mm), and the solder post length is 0.120" (3.05 mm). These dimensions are critical for board stack-up and through-hole solder joint formation.
