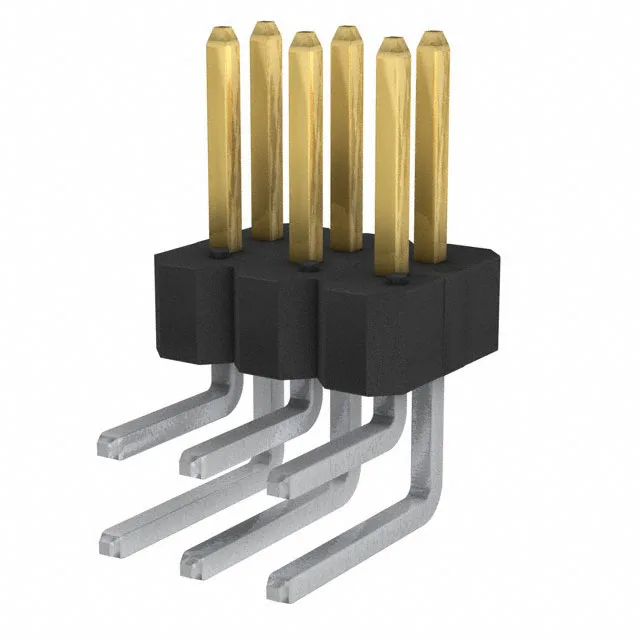

Amphenol ICC (FCI) BERGSTIK header, order code 55102-G1703LF, 6 positions, dual row, 0.100" (2.54 mm) pitch, 3 A, unshrouded, through-hole right-angle, solder termination, gold-plated mating contacts.
Amphenol ICC (FCI) BERGSTIK header, order code 55102-G1703LF, 6 positions, dual row, 0.100" (2.54 mm) pitch, 3 A, unshrouded, through-hole right-angle, solder termination, gold-plated mating contacts.
$0.3198Ref. price · indicative, final on quote
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Gender | Male Pin |
| Mounting type | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -65°C~125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.240\" (6.10mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Bag |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 6 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.120\" (3.05mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
What is the style classification for 55102-G1703LF?
The style is Board to Board, per the series listing.
Does Amphenol ICC (FCI) provide RoHS or UL documentation for this header?
RoHS and REACH compliance documentation is available from Amphenol ICC (FCI) on request.
