Obsolete — Sourcing via Surplus Channels
The 55508-112LF: This part is marked obsolete by the manufacturer. Available through independent surplus channels; quantities are lot-specific and confirmed at RFQ.

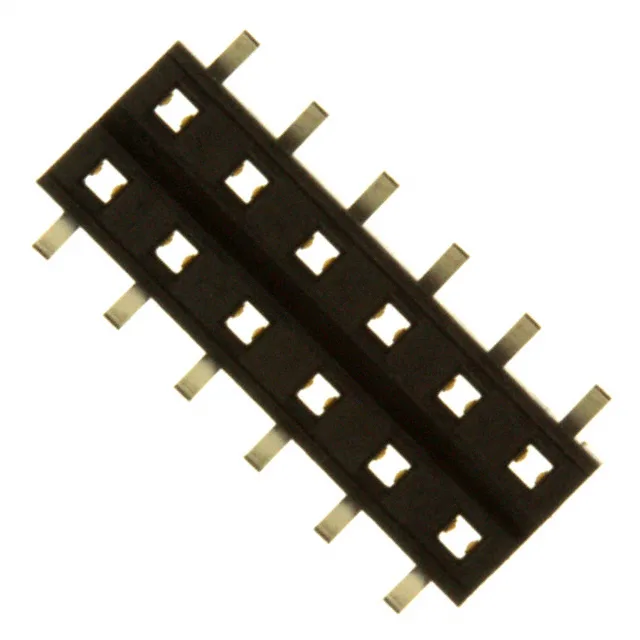

55508-112LF Amphenol ICC (FCI) Minitek 2.00mm Receptacle
MPN55508-112LF
Obsolete
Amphenol ICC (FCI) Minitek 2.00mm series, 55508-112LF, board-to-board receptacle, 12 positions, 2 rows, 2.00 mm pitch, surface mount, gold-plated contacts, 2 A, 200 V, UL94 V-0.
$2.7100Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Minitek® 2.00mm |
| Type | Female Socket |
| Mounting | Surface Mount |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Voltage rating | 200V |
| Current rating | 2A |
| Operating temperature | -55°C~125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.091\" (2.30mm) |
| Insulation material | Plastic |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Tube |
| Termination | Solder |
| Applications | General Purpose, Industrial, Medical |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 12 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
How can I order 55508-112LF or check availability?
55508-112LF is obsolete and sourced through independent distribution. Submit an RFQ for your target volume.
What is the pitch and position count of 55508-112LF?
The pitch is 0.079" (2.00 mm) and it has 12 positions in 2 rows, with all positions loaded.
