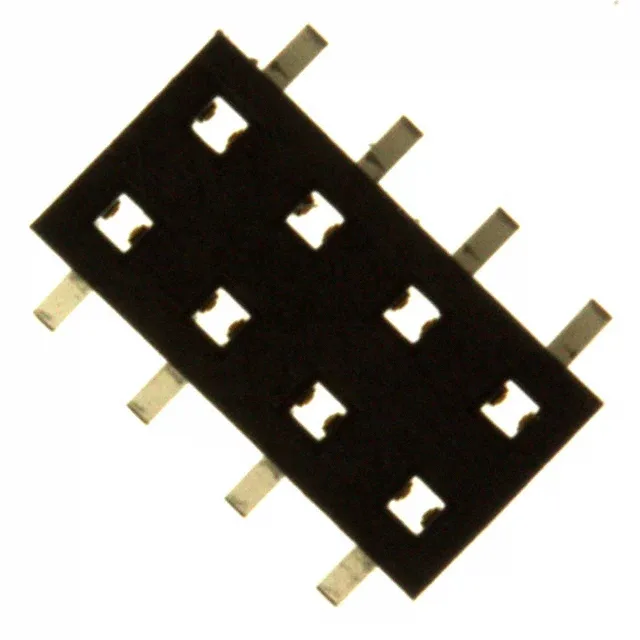

55510-108LF — Amphenol product photo
Amphenol

55510-108LF Minitek 2.00mm 8-Pin SMT Receptacle – Amphenol

MPN55510-108LF
Active

Amphenol ICC (FCI) Minitek® 2.00mm, 8-position, dual-row SMT receptacle, 0.079" pitch, gold mating contacts, 2 A per circuit, UL94 V-0, -55°C to 125°C

$1.5800Ref. price · indicative, final on quote
55510-108LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

55510-108LF Technical Specifications
ParameterValue
SeriesMinitek® 2.00mm
GenderFemale Socket
Mounting typeSurface Mount
Connector typeReceptacle
Fastening typePush-Pull
Voltage rating200V
Current rating2A
Operating temperature-55°C ~ 125°C
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.177\" (4.50mm)
Insulation materialPlastic
Material flammability ratingUL94 V-0
StyleBoard to Board
PackageTube
TerminationSolder
ApplicationsGeneral Purpose, Industrial, Medical
Contact shapeSquare
Rows2
Pitch0.079\" (2.00mm)
Positions8
Row spacing - mating0.079\" (2.00mm)
Contact finish - postTin
Contact finish - matingGold
Contact finish thickness - mating30.0µin (0.76µm)

Product details

The 55510-108LF is a dual-row, 8-position, surface-mount receptacle from the Minitek® 2.00mm series. The -55°C to 125°C operating range and UL94 V-0 housing qualify it for industrial and medical equipment inside an enclosure where flame rating is required.

Gold plating and current ceiling

Position-count and packaging alternatives

For automated pick-and-place, the 8-position version is also available on tape and reel as 55510-108TRLF — same footprint, same electrical ratings, just a different carrier.

Frequently asked questions

Where can I buy 55510-108LF and how do I get a price?

The 55510-108LF is sourced through independent distribution. No stock-holding claim is made here; the part is quoted to order.

What header mates with 55510-108LF?

This is a Minitek 2.00mm receptacle. The push-pull retention relies on the contact interference fit — no latch. Confirm the header's pin length and stack height against your board-to-board gap before ordering.
