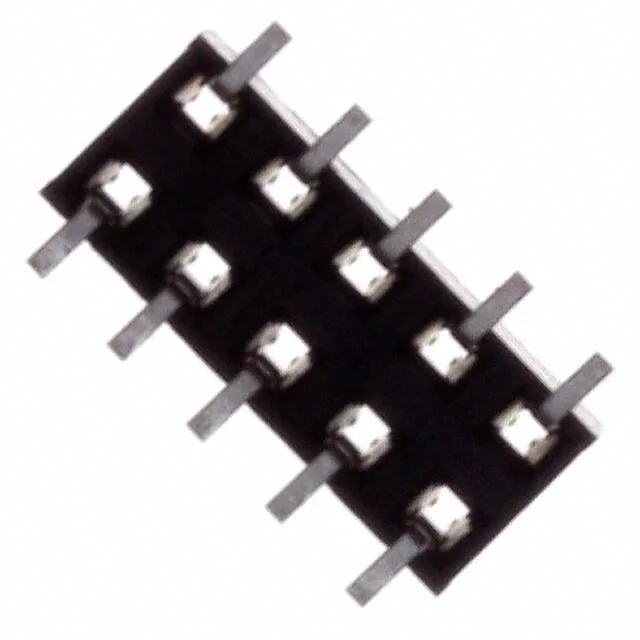

Amphenol ICC (FCI) Minitek® 2.00mm, 55510-110LF, 10-position dual-row board-to-board receptacle, 0.079" pitch, 2 A, gold-plated contacts, surface-mount, black UL94 V-0 housing.
| Parameter | Value |
|---|---|
| Series | Minitek® 2.00mm |
| Type | Female Socket |
| Mounting | Surface Mount |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Voltage rating | 200V |
| Current rating | 2A |
| Operating temperature | -55°C~125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.177\" (4.50mm) |
| Insulation material | Plastic |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Tube |
| Termination | Solder |
| Applications | General Purpose, Industrial, Medical |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 10 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 55510 series shares the same dual-row 2.00 mm pitch, gold-plated contacts, and SMT termination across position counts. The 10-position 55510-110LF sits alongside 12-position (55510-112LF), 14-position (55510-114LF), and 16-position (55510-116LF) siblings — choose the circuit count that matches your board layout.
Yes, the 55510-110LF is RoHS compliant.
