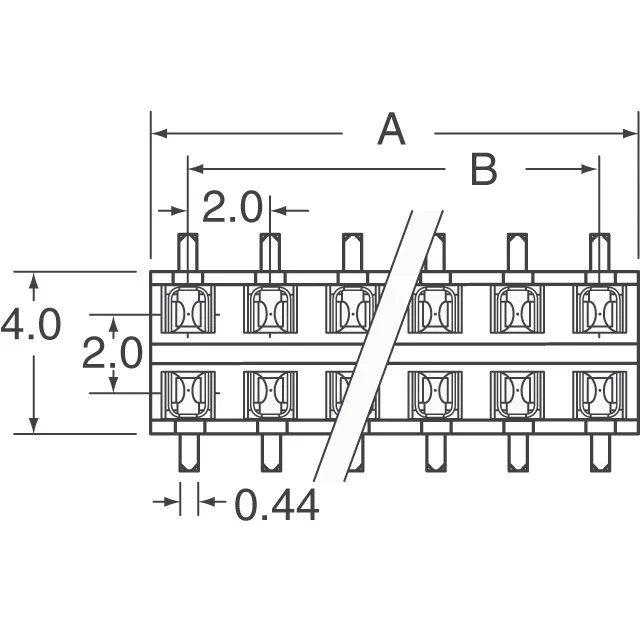

55510-112TR — Amphenol product photo
Amphenol

55510-112TR Amphenol ICC (FCI) Minitek 2.00mm Receptacle

MPN55510-112TR
Obsolete

Amphenol ICC (FCI) Minitek® 2.00mm, 12-position dual-row board-to-board receptacle, surface-mount, gold 30.0µin mating finish, 2A per contact, 200V rating, pick-and-place compatible tape-and-reel.

$2.1200Ref. price · indicative, final on quote
55510-112TR datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

55510-112TR Technical Specifications
ParameterValue
SeriesMinitek® 2.00mm
GenderFemale Socket
Mounting typeSurface Mount
Connector typeReceptacle
Fastening typePush-Pull
Voltage rating200V
Current rating2A
Operating temperature-55°C~125°C
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.177\" (4.50mm)
Insulation materialPlastic
Material flammability ratingUL94 V-0
StyleBoard to Board
PackageTape & Reel (TR)
FeaturesPick and Place
TerminationSolder
ApplicationsGeneral Purpose, Industrial, Medical
Contact shapeSquare
Rows2
Pitch0.079\" (2.00mm)
Positions12
Row spacing - mating0.079\" (2.00mm)
Contact finish - postTin-Lead
Contact finish - matingGold
Contact finish thickness - mating30.0µin (0.76µm)

Product details

Board-to-Board Receptacle for Mezzanine Stacks

The 55510-112TR: The 2.00mm pitch and 0.177" (4.50mm) insulation height set the mated stack height and board spacing — typical for signal-level interconnects in industrial control, medical equipment, and general-purpose electronics. The 2A per-contact rating at 200V covers low-power signal and sensor circuits.

Sourcing an Obsolete Part Number

For a BOM that requires this exact footprint and pitch, the base product number 55510 may have active variants — verify the position count, plating, and packaging against your assembly requirements before ordering.

Surface-Mount Assembly and Packaging

Frequently asked questions

What is the equivalent or replacement for 55510-112TR?

No pin-compatible equivalent or official replacement is recorded for the 55510-112TR. The base product number 55510 may have other active variants, but each differs in position count, plating, or packaging — verify the exact footprint and specs against your BOM before ordering.

What is the pitch and position count of 55510-112TR?

The 55510-112TR has a 2.00mm (0.079") mating pitch with 12 positions arranged in two rows. The row spacing is also 2.00mm. This sets the board footprint for a dual-row SMT receptacle.

Does 55510-112TR support pick-and-place assembly?

Yes, the 55510-112TR is packaged in Tape & Reel and includes a Pick and Place feature, meaning the housing has a flat vacuum-pick area for automated SMT placement.
