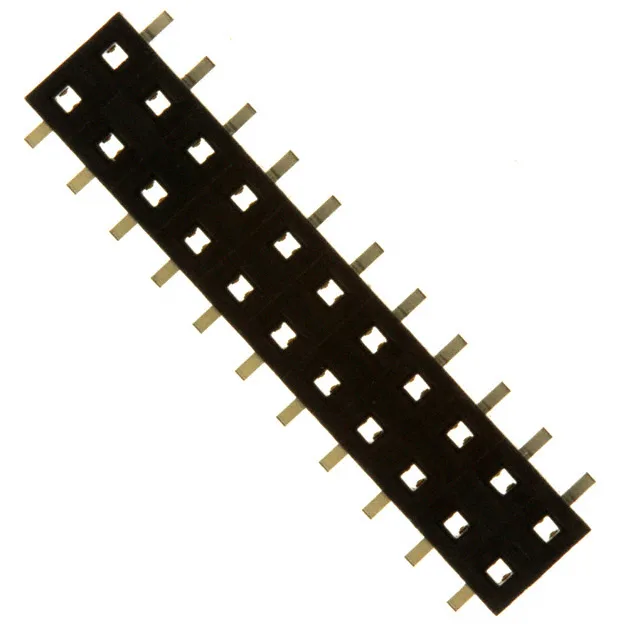

55510-122LF — Amphenol product photo
Amphenol

55510-122LF Amphenol ICC (FCI) Minitek 2.00mm Receptacle

MPN55510-122LF
Active

Amphenol ICC (FCI) Minitek® 2.00mm receptacle, order code 55510-122LF, 22 positions, dual row, 2.00 mm pitch, 2 A, 200 V, gold-plated mating contacts, surface-mount, solder termination.

$1.9072Ref. price · indicative, final on quote
55510-122LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

55510-122LF Technical Specifications
ParameterValue
SeriesMinitek® 2.00mm
GenderFemale Socket
Mounting typeSurface Mount
Connector typeReceptacle
Fastening typePush-Pull
Voltage rating200V
Current rating2A
Operating temperature-55°C~125°C
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.177\" (4.50mm)
Insulation materialPlastic
Material flammability ratingUL94 V-0
StyleBoard to Board
PackageTube
TerminationSolder
ApplicationsGeneral Purpose, Industrial, Medical
Contact shapeSquare
Rows2
Pitch0.079\" (2.00mm)
Positions22
Row spacing - mating0.079\" (2.00mm)
Contact finish - postTin
Contact finish - matingGold
Contact finish thickness - mating30.0µin (0.76µm)

Product details

Board-to-board receptacle, 22 circuits at 2.00 mm pitch

The 55510-122LF is the 22-circuit member of Amphenol ICC (FCI)'s Minitek® 2.00mm board-to-board receptacle line. Gold-plated mating contacts rated 2 A per circuit at 200 V, surface-mount with solder termination, in a dual-row layout.
