Board-to-board receptacle, 2.00 mm pitch

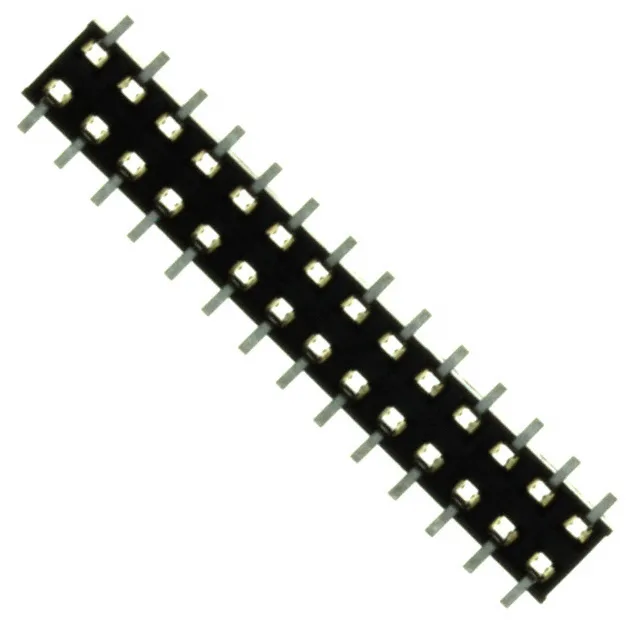

The 55510-128LF is the 28-position dual-row member of Amphenol ICC's Minitek® 2.00mm receptacle line, a board-to-board style connector with a push-pull fastening system.
Amphenol ICC Minitek® 2.00mm receptacle, order code 55510-128LF, 28 positions, dual row, 2.00 mm pitch, 2 A, 200 V, gold-plated mating contacts, surface-mount, solder termination.
$2.5781Ref. price · indicative, final on quote
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | Minitek® 2.00mm |
| Gender | Female Socket |
| Mounting type | Surface Mount |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Voltage rating | 200V |
| Current rating | 2A |
| Operating temperature | -55°C~125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.177\" (4.50mm) |
| Insulation material | Plastic |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Tube |
| Termination | Solder |
| Applications | General Purpose, Industrial, Medical |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 28 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
What compliance documentation is available for the 55510-128LF?
RoHS and REACH compliance documentation is provided by the manufacturer; request the certificate of compliance with the order.
