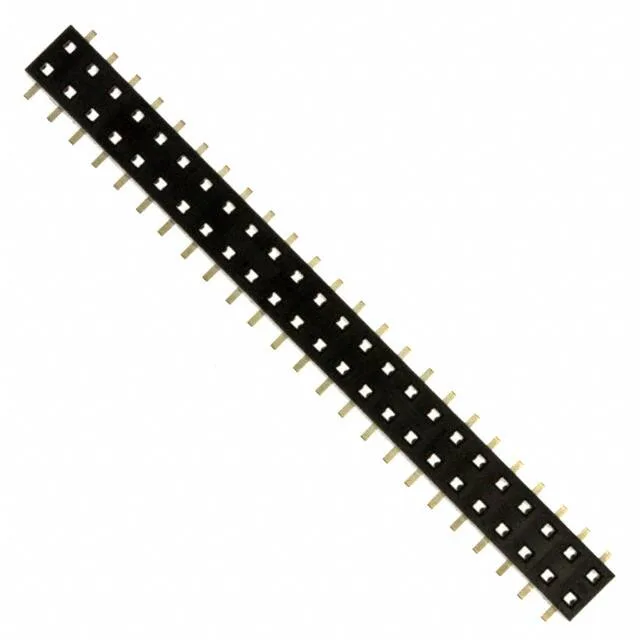

Amphenol ICC (FCI) Minitek® 2.00mm receptacle, order code 55510-148LF, 48 positions, dual row, 2.00 mm pitch, 2 A, 200 V, gold-plated mating contacts, surface-mount, solder termination.
| Parameter | Value |
|---|---|
| Series | Minitek® 2.00mm |
| Type | Female Socket |
| Mounting | Surface Mount |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Voltage rating | 200V |
| Current rating | 2A |
| Operating temperature | -55°C~125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.177\" (4.50mm) |
| Insulation material | Plastic |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Tube |
| Termination | Solder |
| Applications | General Purpose, Industrial, Medical |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 48 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 55510-148LF is the 48-circuit member of Amphenol ICC (FCI)'s Minitek® 2.00mm board-to-board receptacle line. It carries gold-plated mating contacts rated 2 A at 200 V and mounts surface-mount with solder termination.
RoHS and REACH compliance documentation is provided by Amphenol ICC (FCI) for this part.
